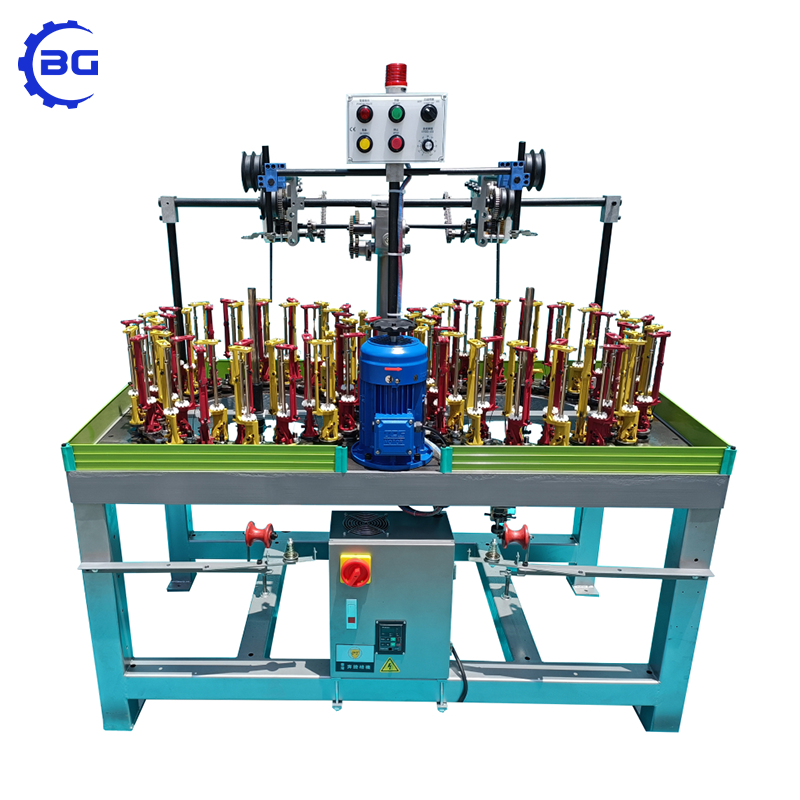

The POC 2/40A represents the apex of industrial braiding technology. Engineered with two powerful work heads, each operating 40 spindles, this machine is engineered for the simultaneous, high-volume production of the most complex, dense, and high-strength braided structures on the market, setting a new standard for productivity and capability.
▎Product Advantage
1. Unparalleled High-Density Output
The POC 2/40A boasts an industry-leading configuration of two heads with 40 spindles each, enabling the production of ultra-dense and intricate braids impossible on standard machines. This immense capacity makes it the definitive solution for large-scale high-density braid manufacturing, effectively doubling your output for applications requiring maximum yarn coverage and strength, such as heavy-duty marine rope production.
2. Precision Engineering for Complex Structures
Forty spindles per head allow for exceptionally tight weave patterns and sophisticated designs. Our advanced, vibration-dampening frame and precision gear system ensure flawless carrier movement at high speeds, guaranteeing uniform tension and perfect braid geometry. This is critical for manufacturing advanced composite preforms and high-specification military cordage where structural integrity is non-negotiable.
3. Intelligent, Centralized Dual-Control System
Master both production heads from a single, user-friendly industrial PLC touchscreen. This system allows for independent programming of speed, pattern, and tension for each head, facilitating seamless transitions between different product runs. This automated dual-head control for 80 spindles minimizes setup time, reduces operator error, and provides detailed production analytics for optimizing your workflow and output quality.
4. Robust Construction for Maximum Uptime
Designed for continuous heavy-duty operation, the POC 2/40A features a reinforced cast structure and premium components. Its superior engineering minimizes mechanical stress and wear, ensuring remarkable longevity and reliability. This commitment to durability makes it a long-lasting industrial braiding workhorse, offering an exceptional return on investment by maximizing production hours and minimizing maintenance downtime.
Keywords: 40-spindle double head braiding machine, high-density dual braider, industrial heavy-duty cable braiding equipment, automated composite sleeve braider, high-output rope manufacturing machine.
▎Technical Parameters
| Model | POC2-40A | Heads | 2 |
| Spindles | 40 | Bobbin Dimension | 48*140mm |
| MAX. R. P. M. Homgear | 300 | Motor Power | 2HP(1.5KW) |
| Voltage | 220V/380V | ||
▎Product Uses
Superior Marine & Offshore Rigging: Specifically engineered for producing the highest-grade, ultra-dense braids for deep-water mooring lines, heavy-lift slings, and offshore platform cables, where maximum strength-to-diameter ratio and abrasion resistance are critical.
Aerospace & Automotive Composites: Ideal for creating precise, high-density braided sleeves and reinforcements for composite materials used in aircraft components, high-performance automotive parts, and sporting goods, providing superior structural properties.
High-Pressure Industrial Hoses: Perfect for braiding the critical reinforcement layer on large-diameter hydraulic and industrial hoses that must withstand extreme pressures, ensuring safety and durability in demanding fluid transfer systems.
Specialized Defense & Safety Applications: Capable of producing technically advanced braids for parachute cords, arrestor systems, ballistic sleeves, and other safety-critical applications that demand the highest levels of performance and reliability verification.
▎Product Operate Guide
Operating the POC 2/40A is streamlined through its centralized control panel. After powering on, use the intuitive touchscreen interface to initialize the system and load your braiding parameters for each head. Follow the clear guide to load all 80 spindles and thread the carriers. The system allows you to start, monitor, and adjust both high-density braiding processes independently or in sync from one station. For complete setup, safety protocols, and maintenance details, download the full POC 2/40A Operational Manual PDF.
▎Product Video
▎FAQ
Q: What is the main benefit of 40 spindles compared to models with fewer spindles?
A: The 40-spindle design allows for significantly denser, stronger, and more complex braid patterns. It provides greater coverage and a tighter weave, which is essential for applications requiring superior burst strength, abrasion resistance, and a smoother final product surface.
Q: Can this machine handle high-modulus, technical fibers like carbon or aramid?
A: Absolutely. The POC 2/40A is built with the precision tension control and robust guiding systems necessary to process advanced technical fibers with minimal filament damage, making it ideal for the composite and technical textile industries.
Q: How is maintenance managed for a machine of this size and complexity?
A: It is designed for serviceability. The manual provides a detailed preventive maintenance schedule. Key components are easily accessible, and our global support network ensures quick access to specialized spare parts and technical assistance when needed.
Q: What power requirements does this industrial model have?
A: The POC 2/40A requires a standard industrial three-phase power supply. Please contact our technical team for the exact voltage and amperage specifications to ensure your facility's infrastructure is properly prepared for installation.
Q: How do I request a custom quotation or technical consultation for my specific application?
A: Please reach out via our website's contact form or email our sales engineering team directly. Providing details about your target braid specifications, material, and desired output will allow us to prepare a tailored proposal and feasibility assessment.
