An Introduction to Textile Braiding Machines

As a senior technical specialist at the forefront of industrial textile manufacturing, I have spent decades analyzing the intersection of mechanical precision and material science. The evolution of braiding technology is not merely about weaving yarns; it is about engineered structural integrity. In an era where cable shielding and hose protection demand extreme reliability, understanding the mechanics of a Vertical Braiding Machine is essential. Clients frequently approach us with complex requirements, from managing high-speed tension for delicate filaments to ensuring the structural consistency of industrial ropes. This guide is designed to strip away the complexities of braiding technology, providing you with a rigorous technical foundation to make informed decisions for your production lines.

At a Glance

What Is a Textile Braiding Machine?

A textile braiding machine is an automated industrial system engineered to interlace three or more strands of yarn or wire in a diagonal, overlapping pattern to create a continuous, unified structure known as a braid.

In my professional experience, the Vertical Braiding Machine represents the gold standard for applications requiring high structural density and axial symmetry. Unlike weaving or knitting, which create fabric sheets, braiding forms a cohesive, rope-like, or tubular structure that is inherently resistant to fraying and possesses superior torsional stability. This makes it the preferred method for reinforcing hoses or providing electromagnetic interference (EMI) shielding for cables, where the geometric precision of the braid dictates the final product's performance.

From an engineering perspective, the machine acts as a complex synchronization of mechanical movements. The core design philosophy centers on the precise control of individual yarn tension while guiding multiple carriers through a complex, intertwined path. Whether we are dealing with metallic wire for high-speed cable shielding or multifilament synthetic fibers, the goal is always the same: consistent, repeatable geometry. Customers often ask why we emphasize vertical designs for certain applications; the answer lies in the efficient use of floor space and the natural gravitational advantage in maintaining uniform tension across high-density carrier arrangements.

When evaluating a Vertical Braiding Machine for your facility, it is critical to look beyond the basic carrier count. You must consider the synchronization speed, the material compatibility of the contact surfaces, and the modularity of the take-up systems. High-end European manufacturers, in particular, prioritize vibration damping and carrier path accuracy, as these factors directly correlate to the structural integrity of the output.

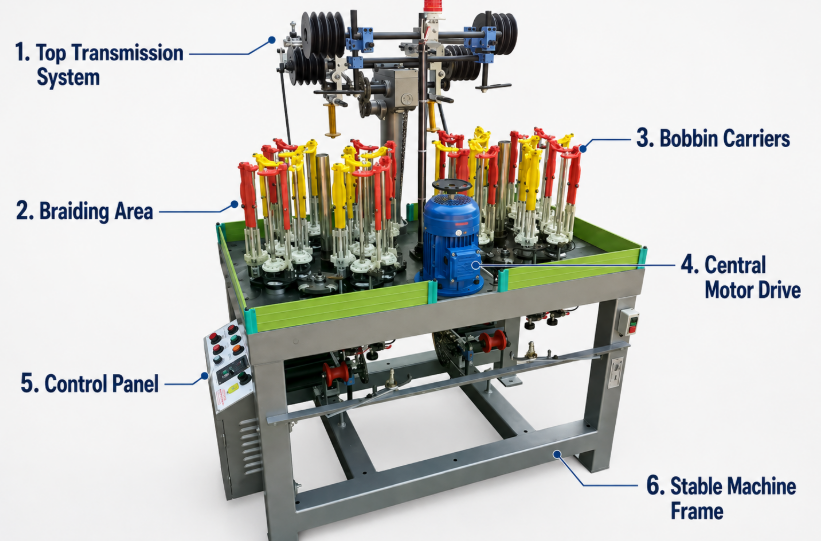

Essential Machine Parameters and Components

What Can You Produce?

Textile braiding machines are versatile manufacturing assets capable of producing everything from protective cable shielding and high-pressure hose reinforcement to complex ropes and surgical sutures.

The versatility of the Vertical Braiding Machine is driven by its ability to handle a vast array of materials, ranging from fine copper wires and carbon fibers to synthetic polymers like Kevlar or Nylon. In the cable industry, for instance, applying a uniform conductive layer is paramount. For high-speed production environments, we often recommend our high-speed sleeve cable shielding system, which ensures precise coverage percentages necessary for signal integrity.

Beyond cable shielding, the machine's capacity to create multi-layered reinforcements is vital for the automotive and aerospace sectors. When producing hoses that must withstand extreme internal pressures, the braid serves as the structural skeleton. By utilizing a dual-head high-speed machine for rope and cable, manufacturers can double their output without sacrificing the specific braid angle required for pressure resistance. This ability to tailor the output structure is why so many of our clients invest in highly configurable platforms.

Furthermore, the machine design must account for the mechanical properties of the input materials. For example, when working with abrasive materials like glass fiber or wire, the contact points of the machine must be constructed from hardened, low-friction materials to prevent premature wear. When we design a hose protection braiding machine, we prioritize robust frame construction to handle the high-tension requirements of heavy-duty reinforcement layers.

How Does a Braiding Machine Work?

A braiding machine operates by guiding multiple yarn carriers along a predetermined sinusoidal path, causing the yarns to cross over each other at a fixed point, thereby interlocking them into a continuous tube or braid.

The mechanism is a symphony of synchronized circular and radial motions. Each carrier holds a spool of material, and as the machine runs, these carriers weave in and out, alternating over and under neighboring strands. This process creates the characteristic diagonal pattern seen in high-performance braids. The precision of the braiding point is the most critical element; if this point fluctuates, the braid density becomes inconsistent, leading to performance failures in the final component.

1. Carriers move in a repeating path

The carriers are mounted on a deck system that follows a track—often referred to as a horn gear path. As the gears rotate, they push the carriers through a series of "S" curves. This motion ensures that carriers move in opposite directions, allowing the yarns to cross without colliding. Maintaining smooth carrier movement is paramount; any sticking or jitter in the gear train will manifest as a visible "mark" in the finished braid.

2. Yarns interlace at the braiding point

The braiding point is where the individual strands meet as they converge from the carriers toward the take-up device. At this junction, the geometric angle at which the yarns meet is controlled by the ratio of the carrier speed to the take-up speed. In professional industrial practice, we use this ratio to calculate the "pick count"—the number of crossings per inch—which is a primary metric for braid quality.

3. A take-up device pulls and winds the braid

Once the braid is formed, it must be pulled away from the braiding point at a controlled, constant velocity. The take-up device serves two purposes: it maintains the necessary tension to keep the weave tight and winds the finished product onto a spool for storage. If the take-up speed is too fast, the braid angle becomes too flat, reducing coverage. If too slow, the braid becomes excessively dense and prone to buckling.

Maintenance Tip: Synchronized Lubrication

To maintain optimal performance, regular lubrication of the horn gear and carrier track system is mandatory. We recommend using high-viscosity synthetic lubricants that do not migrate onto the yarn, as even minor oil contamination can ruin the adhesion properties required for subsequent processes like coating or over-molding.

Two Practical Ways to Classify “Types of Braiding Machines”

Braiding machines are primarily classified either by the mechanical system governing carrier motion or by the structural geometry of the resulting output braid.

Understanding these classifications is essential when selecting equipment for specific production requirements. We typically categorize systems by how they handle the complexity of the carrier path, as this influences machine speed, maintenance intervals, and the range of materials they can handle effectively.

Type A: By braider mechanism (carrier motion system)

This classification distinguishes between machines based on the drive technology. For example, traditional Maypole-style machines utilize a series of rotating horn gears to drive the carriers, whereas more advanced high-speed machines may utilize magnetic or linear drive systems to reduce friction and noise. The choice here is usually dictated by the required production speed and the noise tolerance of your facility environment.

Type B: By braid structure / output form

The output can be broadly classified into flat braids, tubular braids, or over-braids (where the braid is applied directly onto a core). The machine's configuration changes significantly based on the output. For example, a Vertical Braiding Machine designed for core feeding (such as cable or hose) includes central guiding systems to ensure the core is centered exactly at the braiding point.

Common Quality Problems (and What Usually Causes Them)

Quality defects in braiding are almost always traceable to three root causes: uneven yarn tension, incorrect gear timing, or environmental debris interfering with the mechanical path.

When we analyze production defects in the field, we often find that the most persistent issues arise from subtle variations in yarn tension. If one carrier is applying slightly more force than its neighbor, the braid will drift or show "spiraling" defects. Similarly, mechanical timing issues, where a carrier arrives at the intersection point a fraction of a millisecond late, can lead to yarn snagging or dropped stitches.

Frequent Issues and Technical Solutions

1. Uneven Braid Density: Caused by inconsistent take-up motor speeds or belt slipping. We recommend upgrading to servo-controlled take-up motors for maximum precision.

2. Yarn Breakage: Often the result of sharp edges on the carrier guide eyes or excessive drag in the tensioning spring. Regular inspection of all yarn contact surfaces is necessary.

3. Dropped Stitches: Occurs when the path timing is off or if the machine speed exceeds the mechanical capability of the carrier drive. Calibration of the drive gears should be part of a weekly maintenance routine.

In conclusion, the Vertical Braiding Machine is an essential piece of equipment for modern industrial manufacturing. By mastering the fundamental mechanics and attending to the critical details of tension and alignment, you can ensure the highest quality output for your braiding operations. Whether you are scaling up your cable shielding capacity or optimizing high-pressure hose reinforcement, maintaining a rigorous, data-driven approach to your machine settings will always yield the best results. Professional excellence in this field is defined by the consistent application of these technical principles across every meter of product you manufacture.
