Did you know braiding technology powers both everyday consumer items and critical aerospace components? Choosing the right equipment for these highly specialized tasks is a complex endeavor. It requires a deep understanding of mechanical engineering, material science, and production economics. In this comprehensive guide, we strip away the theory and look at the reality of the shop floor. You will learn the exact mechanical classifications of intertwining machinery. We will discuss diverse industrial applications and hard-hitting purchasing criteria. The goal? To help you optimize your production line, eliminate costly downtime, and maximize your return on investment.
Diverse Classifications: Industrial braiding systems are categorized by structural output and mechanical design. This encompasses flat, tubular, rotary, and advanced 3D configurations.
Endless Applications: This equipment is foundational across multiple sectors. Applications range from heavy-duty marine cordage and wire shielding to precision medical devices.
Purchasing Criteria: Selecting appropriate machinery requires evaluating spindle count, material compatibility (metallic wire versus synthetic yarn), and required production velocities.
Technological Advancements: Modern manufacturing relies heavily on automated, dual-head configurations and IoT-integrated systems. These upgrades maximize operational efficiency while drastically reducing floor space requirements.
To make informed procurement decisions, buyers must first understand the foundational mechanics. Think of a braiding machine as the backbone of flexible structural manufacturing. At its core, it is a specialized piece of equipment designed to intertwine three or more strands of flexible material. Whether you are processing textile yarns, synthetic fibers, or metallic wires, the machine creates a unified, diagonally overlapping matrix. The result is a product that handles immense stress and offers exceptional structural integrity.
The fundamental operation of traditional braiding equipment closely resembles a mechanical Maypole dance. The machine utilizes a series of carriers—which hold the raw material bobbins—that move along designated track plates. These plates are driven by interlocking horn gears. As the gears rotate, half of the carriers travel in a clockwise direction. Simultaneously, the other half travel counterclockwise. This intersecting sinusoidal movement forces the strands to pass over and under one another. Ultimately, it forms a continuous, highly stable braided profile.
Why do engineers specify braiding over other textile processes? Understanding the distinction clarifies its industrial value. Weaving involves two distinct sets of threads (warp and weft) intersecting at right angles. This produces flat fabrics with limited diagonal stretch. Knitting utilizes a single continuous yarn to create interlocking loops, resulting in highly elastic but structurally vulnerable fabrics. In contrast, braiding intertwines multiple strands at oblique angles to the production axis. This creates a structure with exceptional torsional stability, load distribution, and resistance to radial expansion. These properties are absolutely critical for structural cables, climbing ropes, and high-pressure hoses.
Historically, braiding was a laborious manual process. It was later mechanized using wooden components during the Industrial Revolution. Today, the industry has transitioned to precision-engineered, automated systems. Modern equipment utilizes advanced metallurgy, computerized tension controls, and high-speed rotary mechanisms. Consequently, factories achieve production rates that were theoretically impossible just a few decades ago.
For manufacturing facilities, identifying the correct category of machine is the crucial first step. A mismatch here guarantees production bottlenecks. Braiding machines are generally classified by their structural output and their mechanical operating speeds.
The desired end-product directly dictates the physical geometry of the machine you need on the floor.
Feature | Tubular Braiding Machines | Flat Braiding Machines |
|---|---|---|
Output Shape | Cylindrical, hollow, or core-filled. | Flat, narrow, and ribbon-like. |
Carrier Path | Carriers move in a continuous closed circular track. | Carriers move in a semi-circular track, reversing at the ends. |
Common Applications | Ropes, electrical cables, coaxial wires, pressure hoses. | Shoelaces, elastic bands, decorative trims, flat grounding straps. |
Core Insertion | Allows for a central core (e.g., a copper wire or rubber tube) to be fed through the center. | Generally does not utilize a central core. |
Beyond the shape of the output, the mechanical architecture determines both the yield and the complexity of the patterns.
Traditional Horn Gear (Maypole) Braiders: These machines are the industry standard for versatility. They utilize interlocking horn gears to pass carriers back and forth. While they operate at standard speeds (typically 150 to 300 RPM), they excel at producing complex patterns. They are also ideal for handling delicate materials that require precise, low-tension handling.
Rotary / High-Speed Braiding Machines: Designed explicitly for mass production, rotary machines utilize a radically different mechanical principle. Instead of passing carriers between gears, they use a central rotating track or cam system. This fluid motion allows speeds to comfortably exceed 800 RPM. If you are running high-volume, standardized products, this is your go-to architecture.
Evaluating technical specifications requires a working knowledge of the machine's anatomy. The machining tolerance and configuration of these core components directly impact your final product's quality.
Spindles hold the raw material bobbins, while the carriers transport these spindles along the track. The spindle count is a defining specification. Common industrial configurations include 16, 24, 32, or 48 spindles. The number of spindles dictates the width, outer diameter, and surface smoothness of the braid. For instance, a 24-spindle configuration provides a significantly denser, more uniform coverage compared to a 16-spindle setup. This makes it highly desirable for heavy-duty climbing ropes and industrial cables.
The track plate is the physical foundation that dictates the carrier path. Beneath this plate, the arrangement of the horn gears determines the specific braiding pattern. Plant engineers can adjust gear configurations to produce regular braids (over two, under two), half-standard braids (over one, under one), or complex diamond patterns. It depends entirely on the structural requirements of the product.
The take-off mechanism pulls the finished braid away from the braiding point at a strictly controlled rate. The ratio between the braiding speed (carrier RPM) and the take-off speed determines the "pitch" or angle of the braid. Consistent tension control here is absolutely essential. Minor fluctuations will result in uneven braid density. When that happens, core materials are exposed, and products fail stringent quality control inspections. Investing in reliable industrial braiding equipment with automated tension feedback loops is the best way to eliminate these costly defects.
Braiding machines are not limited to a single sector. Their inherent versatility allows them to serve critical manufacturing functions across diverse global industries.

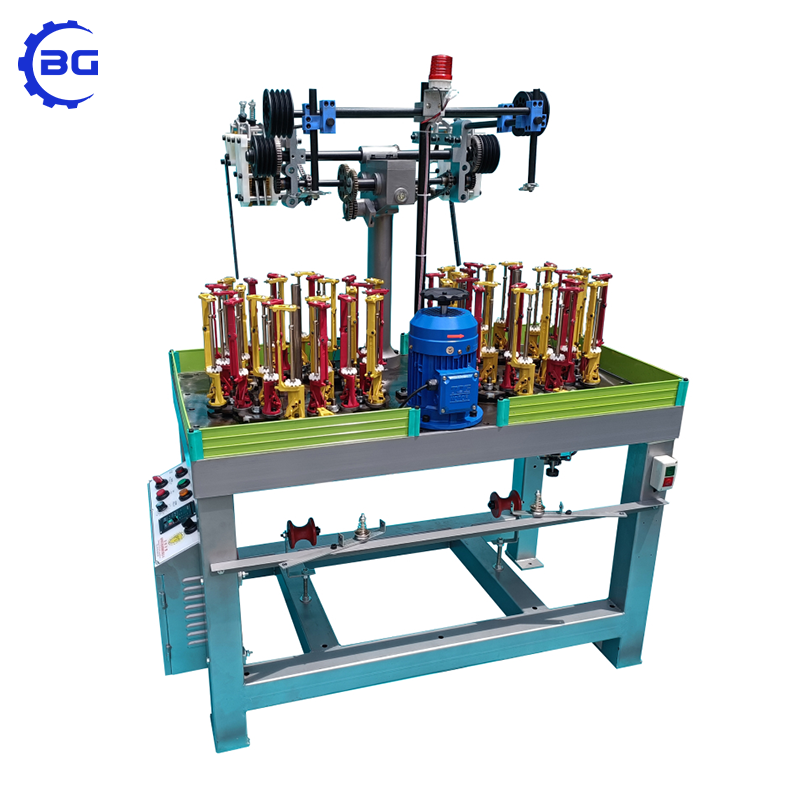

The marine and outdoor industries rely heavily on braided structures. High-strength climbing ropes, mooring lines, bungee cords, and safety lanyards all require exceptional flexibility and torque-free handling. To meet massive high-volume demands, manufacturers frequently deploy specialized, multi-head equipment. For example, utilizing a High-Speed Rope Cable Braiding Machine allows facilities to maximize their output per square meter. This specific setup produces dense, high-tensile cordage efficiently while maintaining strict dimensional tolerances across long production runs.
In the electrical and telecommunications sectors, wire braiders apply protective metal shielding—usually copper, aluminum, or stainless steel—over internal conductors. This braided shield serves two critical purposes. First, it provides robust mechanical protection against abrasion. Second, it acts as a Faraday cage, preventing Electromagnetic Interference (EMI) from disrupting sensitive data transmission in coaxial cables and aerospace wiring.
The medical sector demands extreme precision, utilizing micro-braiding technology. Specialized machines are used to reinforce surgical catheters with ultra-fine stainless steel or nitinol wires. This braided reinforcement gives the catheter vital "pushability" and torque control. It allows surgeons to navigate complex human vascular systems without the tube kinking or collapsing under pressure.
Selecting the appropriate industrial equipment is a critical bottom-of-funnel decision. It directly impacts your production efficiency, product quality, and overall return on investment (ROI). Because the market offers a vast array of configurations, manufacturers must systematically evaluate their specific operational parameters before procuring new equipment. A mismatched system leads to excessive downtime and compromised structural integrity.
To make an informed purchasing decision, facility managers should evaluate three primary criteria: material compatibility, spindle configuration, and the balance between speed and versatility.
The first step is a thorough analysis of the materials you intend to process. Braiding equipment is not universally compatible. The mechanical properties of the strands—such as tensile strength, flexibility, friction coefficient, and diameter—dictate the required specifications of the carriers and tension mechanisms.
For example, processing soft natural yarns requires highly sensitive tension springs. If the tension is too high, the fibers stretch or break. Conversely, braiding metallic wires for cable shielding demands heavy-duty mechanical components. Metal wires are inherently stiff and heavy. Therefore, a machine tasked with wire braiding must be equipped with reinforced track plates and robust tension control systems. Using a standard textile braider for metal wire will inevitably result in catastrophic mechanical failure.
The spindle count directly determines the maximum diameter, width, density, and pattern complexity of the braided product. While 16 spindles work for narrow cords, a higher count becomes mandatory as the core diameter increases.
Furthermore, floor space is a premium asset in any manufacturing facility. To maximize output, many factory layouts benefit from dual-head systems. A dual-head machine houses two distinct braiding mechanisms on a single robust frame, allowing operators to produce two identical products simultaneously. For facilities looking to optimize high-volume lines without expanding their physical footprint, investing in a Dual Head 24 Spindle Braiding Machine provides a measurable advantage in throughput and operational efficiency.
Production engineers constantly face the trade-off between pure operational speed and pattern versatility. Understanding your typical production run length is crucial.
High-speed rotary machines minimize mechanical friction and achieve exceptionally high RPMs. They are the optimal choice for continuous, high-volume production runs of standardized products. On the other hand, traditional horn gear (Maypole) braiders offer unparalleled versatility. They easily switch between regular, half-standard, and diamond braids. They are ideal for manufacturers who handle diverse custom orders or require frequent pattern changeovers.
Industrial machinery represents a significant capital expenditure. To ensure a prolonged operational lifespan, implementing a rigorous preventative maintenance protocol is non-negotiable. Neglecting maintenance accelerates mechanical wear and directly causes defects in the braided output.
The core of any braiding system involves intense metal-on-metal contact. Without proper lubrication, the friction generated at high speeds will quickly degrade track plates and horn gears. Operators should use compressed air daily to remove accumulated dust, lint, and fiber debris. Fiber buildup absorbs lubricants and creates a highly abrasive paste. Furthermore, automated lubrication systems are highly recommended for continuous-duty machines, as they deliver precise amounts of oil at regular intervals.
Inconsistent tension is the root cause of over 80% of braiding defects. If a facility experiences frequent "bird-caging" (where strands bulge outward) or frequent strand breakages, tension calibration is usually the culprit. Maintenance personnel must regularly calibrate the carrier tension springs using a digital tension meter. Ensuring the release force on every bobbin is mathematically identical is the only way to guarantee a uniform product.
The manufacturing sector is undergoing a rapid transformation driven by digitalization and advanced materials. The braiding equipment industry is evolving in tandem. Original equipment manufacturers are integrating sophisticated technologies to meet the complex demands of modern production environments.
Recent market analyses indicate that the global technical textile sector is driving a significant compound annual growth rate (CAGR) for advanced machinery. The industry is seeing a massive shift toward processing high-modulus fibers, such as UHMWPE (Ultra-High Molecular Weight Polyethylene) and Aramid. These materials are notoriously difficult to braid due to their low friction coefficients and high stiffness. Driven by the lightweighting trends in the electric vehicle (EV) and aerospace sectors, facilities are aggressively upgrading to machines with ultra-precise, servo-driven tensioning systems to handle these advanced composites without causing structural degradation.
The integration of Industry 4.0 principles is a game-changer. Traditional mechanical controls are being rapidly replaced by Programmable Logic Controllers (PLCs) paired with touch-screen interfaces. This ensures absolute repeatability across different batches. Furthermore, the implementation of smart sensors has drastically reduced defect rates. Automatic yarn-breakage sensors can detect a snapped strand in milliseconds, immediately halting the rope cable braiding machine before the defect is woven into meters of unusable product. IoT integration is also becoming standard, allowing factory managers to monitor machine health remotely.
Understanding the nuanced classifications of braiding machinery is the foundational step toward ensuring manufacturing success. Whether your facility is tasked with producing heavy-duty marine cordage, delicate medical catheters, or EMI-shielded aerospace cables, the mechanical principles remain the same. However, the equipment execution varies wildly.
Selecting the proper equipment directly improves your production ROI by minimizing downtime and reducing material waste. Strategic investments, such as implementing dual-head, 24-spindle configurations, can reduce lead times significantly while maximizing your existing floor space. We highly encourage production managers to evaluate their current operational bottlenecks carefully today.
By exploring advanced, high-speed braiding equipment options tailored to your specific material needs, you can future-proof your production line. If you are looking to upgrade your facility with reliable, high-yield machinery, explore the industrial solutions at BGBraiding to find the exact technical configuration that aligns with your output goals.
The primary difference lies in the density, width, and potential complexity of the resulting braided product. The spindle count dictates how many individual strands (carriers) are interwoven during the process. A 16-spindle machine is typically utilized for smaller diameter products, such as basic electrical wire shielding or thin cords. In contrast, a 24-spindle machine introduces eight additional strands into the matrix. This allows the equipment to manufacture wider flat braids or larger diameter tubular braids with a much smoother, denser surface finish. The 24-spindle configuration is highly favored in marine rope manufacturing and heavy-duty cable shielding.
From a strict engineering standpoint, utilizing the same machine for both soft textiles and stiff metal wires is highly discouraged. Wire braiding machines are specifically engineered to withstand immense dynamic loads. They require heavy-duty carriers, reinforced steel track plates, and robust tension springs to manipulate the stiffness and weight of metal strands. Conversely, textile braiders are optimized for delicate materials; they utilize lighter carriers and highly sensitive tension controls to prevent snapping soft yarns. Attempting to run metal wire on a textile machine will cause catastrophic damage to the track plates.
In industrial machinery terminology, a "dual-head" configuration refers to a system that incorporates two completely independent braiding mechanisms (heads) mounted onto a single, unified machine frame. Each head possesses its own set of spindles, track plates, and take-up mechanisms. The primary advantage of a dual-head machine is space optimization and increased throughput. It allows a manufacturer to produce two identical braided products simultaneously. This effectively doubles the production output capacity of that specific workstation without requiring the factory to allocate double the floor space.
The operational speed of a braiding machine is measured in Revolutions Per Minute (RPM) or picks per minute. Traditional horn gear (Maypole) braiders typically operate at standard speeds ranging from 150 to 300 RPM. This controlled speed is necessary to maintain intricate interlocking patterns. However, modern high-speed rotary braiding machines utilize a simplified, circular carrier path that drastically reduces mechanical friction. Depending on the specific model and material, these advanced rotary machines can comfortably exceed speeds of 300 to 800 RPM, allowing for significantly higher production yields.
Bird-caging occurs when the braided strands push outward, away from the core, creating a bulge that resembles a bird's cage. This defect is almost exclusively caused by inconsistent tension among the carriers or an improper ratio between the braiding speed and the take-off speed (pitch). To prevent it, maintenance engineers must regularly calibrate all carrier tension springs using a digital tension meter to ensure uniform release force. Additionally, ensuring the core material is fed at a perfectly consistent rate is critical to maintaining a tight, uniform braid.
The pitch of a braided product is defined as the linear distance measured along the longitudinal axis for one complete revolution of a single strand. From a production standpoint, it is determined by the ratio of the take-off speed (how fast the product is pulled through the machine) to the rotational speed of the carriers (RPM). Engineers calculate and adjust the pitch by changing the draft gears in the take-off mechanism. A shorter pitch results in a tighter, denser braid with higher coverage but lower production speed, while a longer pitch increases production speed but reduces structural density.
