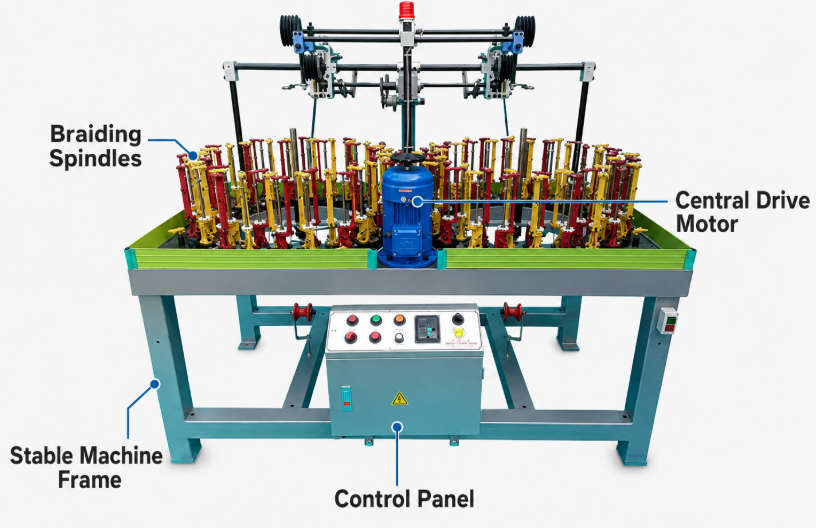

A vertical braiding machine is an automated industrial apparatus designed to interlace three or more strands of yarn, wire, or synthetic fiber in a continuous diagonal path around a vertical axis to produce high-strength ropes, protective sleeves, and electrical shielding.
Section | Summary |
The Essence of Braiding in Textile Manufacturing | Explores the fundamental mechanical principles, interlacing geometry, structural advantages, and carrier motion dynamics that differentiate braiding from traditional weaving and knitting processes. |
Braiding's Role in Textile Innovation | Analyzes how advanced vertical braiding architectures drive multi-disciplinary engineering innovations across automotive, aerospace, marine, medical, and industrial technical textile sectors. |
Enhancing Textiles with Braiding Machines | Details mechanical specifications, digital tension regulation, horn gear design, and speed control mechanisms that optimize tensile strength, core coverage, and production throughput. |
Diverse Braiding Techniques in Textile Production | Breaks down specific architectural variations including tubular, solid diamond, regular 2-over-2, and high-density sleeve configurations, paired with technical parameter comparisons. |
Innovations in Braiding Machinery | Covers state-of-the-art automated drive systems, smart monitoring sensors, modular carrier configurations, and preventive maintenance protocols for high-speed continuous operations. |
Textile braiding is a precision mechanical interlacing technique where multiple strand carriers travel along intersecting serpentine tracks driven by horn gears, creating a seamlessly integrated tubular or solid structure with high torsional stability.
At its fundamental structural level, braiding differs significantly from standard weaving or warp knitting. While woven textiles rely on mutually perpendicular warp and weft system orientations, braided structures introduce continuous diagonal yarn trajectories relative to the longitudinal axis of the product. This oblique angle, typically set between 30 and 60 degrees depending on the target application, allows the finished sleeve or rope to absorb substantial axial stretching, radial compression, and multi-axis bending forces without experiencing structural dislocation or ply separation.
The core mechanical principle relies on a series of intermeshing horn gears positioned beneath a slotted track plate, often called a maypole mechanism. As these horn gears rotate in alternating directions, they push yarn carriers along overlapping figure-eight paths. Half of the carriers move in a clockwise direction while the remaining half travel counter-clockwise. The continuous crossing over and under of individual fiber ends produces a unified structure characterized by balanced internal torque. Because the mechanical stress distributes evenly across all diagonal elements, braided products exhibit exceptional resistance to shear loads and axial bursting pressures.
In technical textile processing, structural integrity depends directly on maintaining stable yarn tension at the point of convergence, commonly referred to as the braiding point. When processing slippery synthetic fibers or rigid metallic wires, any variation in carrier spring tension or track friction leads to uneven pick density and visual pitch defects. Modern industrial braiding setups utilize precision spring-loaded bobbin carriers equipped with ratcheted mechanical pawls or continuous friction compensation brakes. These assemblies ensure that each yarn strand feeds into the braiding point under uniform tensile loading regardless of bobbin fill level.
The load-bearing dynamic of a braided tube or sheath is governed by the structural pitch length and braid angle. The braid angle is measured relative to the longitudinal axis of the central core or internal mandrel. When a braided structure experiences axial tension, the diagonal yarns attempt to align with the axis of force, causing the overall diameter to contract and grip the core securely. Conversely, under internal hydrostatic pressure—such as in reinforced rubber or thermoplastic hoses—the radial expansion forces push the braid angle toward the neutral angle of approximately 54.7 degrees, where tensile loads between longitudinal and circumferential vectors reach equilibrium.
To achieve exact mechanical properties, machinery designs must maintain strict synchronization between the rotation speed of the track horn gears and the linear haul-off speed of the capstan or caterpillar puller. The relationship between these variables determines the picks per inch (PPI) or picks per centimeter, directly impacting wall thickness, flexibility, surface coverage percentage, and linear density.
For high-volume industrial production, selecting the optimal equipment platform requires evaluating carrier capacity, bobbin volume, and machine layout footprint. For high-density electrical shielding and protective sleevings, utilizing a twin-head high-speed cable shielding braiding machine allows manufacturers to double production output while maintaining strict surface coverage ratios across two independent lines simultaneously.
Braiding machinery serves as an essential manufacturing driver across technical industries by enabling the seamless combination of advanced synthetic fibers, metallic conductors, and high-performance hybrid filaments into customized structural profiles.
In composite engineering, advanced vertical braiding machines generate continuous dry fiber preforms using carbon, aramid, and S-glass fibers. These preforms are subsequently impregnated with epoxy or thermoplastic resins through Resin Transfer Molding (RTM) processes. Braided preforms offer superior damage tolerance and impact resistance compared to traditional unidirectional tape layups because the structural fibers are mechanically intertwined. When impacted, the interwoven fiber nodes arrest crack propagation and resist delamination failure modes.
In electrical harness manufacturing and electromagnetic compatibility (EMC) engineering, braiding machinery applies high-density wire shields over delicate data transmission lines, automotive sensor wiring, and high-voltage EV battery distribution networks. Tiny continuous tinned copper or aluminum alloy wires, ranging from 0.05 mm to 0.20 mm in diameter, are braided directly onto the insulated core. This protective metal layer blocks radio frequency interference (RFI) while providing high mechanical durability against chafing and crushing.
In medical device manufacturing, specialized micro-braiding machines construct flexible reinforcing sheaths for diagnostic catheters, endoscopic shafts, and vascular delivery systems. Utilizing ultrafine stainless steel, nitinol, or polymer monofilaments on micro-carriers, these machines create thin-walled shafts that deliver high torque transfer from the proximal handle to the distal tip while retaining low bending stiffness and high kink resistance.
To contextualize the technical benefits of braiding relative to alternative fabric formation processes, the following analytical matrix summarizes core mechanical characteristics:
Performance Metric | Braiding Process | Circular Knitting | Shuttleless Weaving |
Fiber Trajectory | Continuous 2D/3D Diagonal (15°–75°) | Interlocking Loop Structures | Perpendicular Warp and Weft (0°/90°) |
Axial Tensile Efficiency | Very High (When aligned with load) | Low to Moderate (High Elastic Stretch) | High (In axis of warp yarn) |
Torsional Resistance | Excellent (Balanced double-helix) | Low | Moderate |
Radial Expansion/Contraction | Dynamic (Flexible scissor action) | High Elastic Recovery | Rigid (Minimal radial movement) |
Core Insertion Ability | Direct inline coaxial core feeding | Limited inline insertion capability | Mandrel required; non-coaxial |
Surface Abrasion Resistance | High (Smooth overlapping surface) | Moderate (Loop heads exposed) | High |
The continuous structural matrix formed by braiding makes it uniquely suitable for applications requiring omnidirectional flexibility combined with axial load transmission. In rope and commercial line production, switching from traditional three-strand twisted constructions to 16-carrier or 32-carrier braided architectures eliminates inherent line torque, preventing dangerous hockling and kinking during dynamic lifting or marine towing operations.
Modern braiding machines enhance textile quality by using digital frequency control systems, dynamic yarn tension compensators, precision core guiding mechanisms, and automated broken-end detection sensors to eliminate structural defects.
Achieving top-tier product consistency across continuous multi-thousand-meter production runs requires strict control over mechanical variables. The central driving shaft powering the horn gears must operate without gear lash or rotational flutter. Modern high-speed machines utilize inverter-controlled AC induction motors or synchronous servo drives linked to precision timing belts or hardened oil-bath spur gears. This rigid transmission design prevents speed fluctuations during acceleration and deceleration phases, maintaining stable pick density throughout the manufacturing cycle.
Core centering represents another critical variable when manufacturing braided protective sleeves, shielded cables, or reinforced rubber hoses. If the core material strays from the exact center of the braiding point, the strand coverage becomes asymmetric. This leads to thin spots on one side of the cable and high material accumulation on the opposite side. Advanced vertical braiding machinery incorporates adjustable multi-axis core guides positioned immediately below and above the track plate, forcing the central element along a perfectly concentric path through the braiding ring.
For high-volume rope, cordage, and industrial cable outer jacket processing, utilizing an automatic dual-head high-speed braiding machine for rope ensures uniform pick alignment, high line speeds, and continuous quality monitoring across dual production channels.
The operational capabilities of industrial vertical braiding platforms depend on key engineering parameters, summarized in the table below:
Machine Parameter | Standard Speed Vertical Unit | High-Speed Sleeve Braiding Unit | Heavy-Duty Hose/Rope Unit |
Carrier Count Range | 8, 12, 16, 24, 32 | 16, 24, 32, 48 | 24, 36, 40, 64 |
Track Plate Configuration | Maypole / Oval Track | Heavy-Duty Hardened Steel Slot | Reinforced Segmental Steel Ring |
Maximum Horn Gear Speed | 100 – 180 RPM | 250 – 400 RPM | 80 – 150 RPM |
Bobbin Volume Capacity | 150 cm³ – 350 cm³ | 200 cm³ – 500 cm³ | 800 cm³ – 2500 cm³ |
Carrier Tension Range | 50 g – 400 g | 100 g – 1200 g | 500 g – 5000 g |
Drive Motor Power | 0.75 kW – 1.5 kW | 1.5 kW – 3.7 kW | 4.0 kW – 11.0 kW |
Integrated Sensors | Infrared / Mechanical Wire Drop | Optoelectronic / Broken-End Stop | Proximity / Pay-off Tension Guard |
Operational efficiency relies heavily on automated fault detection. High-speed operation makes manual monitoring impossible; a single broken yarn strand can wrap around the braiding head within seconds, causing mechanical jams and expensive carrier damage. Modern vertical machines employ optoelectronic or mechanical drop-wire sensors mounted directly to each carrier. If a strand breaks or runs out, the sensor instantly triggers an electronic brake module, bringing the machine head to a complete stop within one to two revolutions.
Textile braiding encompasses distinct architectural techniques—including 2-over-2 regular braid, 1-over-1 diamond braid, solid square braiding, and heavy multi-layer industrial sleeving—each configured for specific tensile, flexibility, and coverage demands.
The selection of a braiding pattern dictates the physical geometry and functional behavior of the finished product. The most common structure is the regular 2-over-2 braid, where two carriers passing clockwise alternate under and over two carriers moving counter-clockwise. This layout strikes an optimal balance between structural stability, surface smoothness, and radial elasticity, making it the industry standard for protective textile sleevings, expandable cable harness wraps, and general cordage.
The 1-over-1 diamond braid configuration alternates individual strands in a single over-and-under pattern. This produces a tight, highly stable structure with higher friction resistance and reduced pore size. Diamond braiding is widely applied in high-precision technical lines, fishing cords, and surgical sutures, where surface smoothness and minimal structural elongation under tensile load are mandatory design requirements.
For heavy-duty industrial fluid transfer applications, such as high-pressure hydraulic lines, automotive cooling hoses, and industrial washdown hoses, high carrier density machines are essential. Utilizing a 2-head 40-carrier high-speed hose protection braiding machine allows manufacturers to apply dense multi-strand textile or metallic wire jackets over flexible rubber or extruded PTFE cores at high linear speeds.
To select the correct machinery setup for specific technical requirements, engineering teams must evaluate structural choices against operational performance indicators:
Expandable Harness Sleeving:
Requires a 2-over-2 regular braid using PET or PEEK monofilaments (0.20 mm to 0.25 mm diameter). The braid angle is kept open (~35 degrees) during manufacturing, enabling the end-user to push the sleeve open radially to slide over large multi-pin electrical connectors.
High-Pressure Hydraulic Hose Reinforcement:
Demands a 2-over-2 braid using high-tenacity polyester, aramid, or steel wire strands applied tightly at the neutral angle (54.7 degrees). High carrier spring tension is required to prevent yarn slippage and internal void formation under dynamic pressure cycling.
High-Density Signal Cable Shielding:
Employs fine tinned copper wires (0.10 mm to 0.12 mm) configured in a 16-carrier or 32-carrier architecture with high picks per inch to achieve greater than 85% to 95% optical coverage for complete electromagnetic shielding.
Heavy Marine Mooring Ropes:
Utilizes a core-and-jacket construction. The inner load-bearing core is braided from high-modulus polyethylene (HMPE) on a 12-strand or 16-strand machine, followed by an outer protective polyester jacket applied via a secondary braiding deck to shield against UV radiation and mechanical deck abrasion.
Recent breakthroughs in vertical braiding technology feature digital pitch-matching servos, automated bobbin winding systems, wear-resistant ceramic yarn guides, and real-time Industry 4.0 data telemetry for predictive maintenance.
From an operational and maintenance standpoint, the track plate and horn gear assembly experience continuous sliding friction during high-speed production cycles. Traditional cast iron tracks required frequent manual lubrication with liquid oil, which often contaminated the processing yarns. Advanced vertical braiding machinery now incorporates track plates machined from high-carbon alloy steel, surface-hardened via gas nitriding, or faced with ultra-high-molecular-weight (UHMW) synthetic inserts. Paired with high-purity ceramic eyelets along the yarn path, these improvements eliminate yarn abrasion and reduce static electricity buildup when running heat-sensitive synthetic fibers or fine wires.
Digital control integrated with PLC touchscreens allows production engineers to change braid pitch (picks per inch) electronically within seconds. Older mechanical braiders required stopping the machine, opening drive gearboxes, and changing physical change gears to adjust the take-up speed relative to the head speed. Modern servo-driven capstan systems automatically adjust linear haul-off speed based on real-time rotary encoder feedback from the braiding head, eliminating manual gear changes and minimizing machine downtime during product changeovers.
European and North American production facilities prioritize noise abatement and operator safety. Modern high-speed vertical braiding machines are housed within fully enclosed sound-dampening cabinets lined with acoustic insulation and equipped with safety-interlocked doors. These enclosures reduce operating noise levels from over 90 dBA down to below 75 dBA, ensuring compliance with strict industrial workplace safety standards while protecting the operational mechanism from ambient industrial dust and airborne lint.
By specifying robust vertical braiding platforms designed for high mechanical accuracy, uniform carrier tension control, and low maintenance overhead, technical textile manufacturers can reliably meet demanding client specifications while optimizing operational throughput across high-volume production lines.
