Loom Jacquard Mechanism: How It Works, Parts, Diagram, and Repeat-Width Formula Explained

The loom Jacquard mechanism is an advanced shedding device that controls individual warp yarns using hooks, needles, harness cords, and electronic solenoids to form intricate decorative patterns in narrow webbing and broad fabrics. By integrating precise electronic impulses with mechanical lifting knives, modern Jacquard needle loom machinery achieves high speed shedding control, custom design versatility, and exact repeat width calculations for industrial textile manufacturing.

Table of Contents

1. Inside the Loom Jacquard Mechanism

2. The Formula Behind the Loom Jacquard Mechanism

3. Loom Jacquard Mechanism Interactive Calculator

4. Industries That Rely on the Loom Jacquard Mechanism

5. Anatomy and Key Components of the Jacquard Needle Loom

6. Technical Maintenance and Operational Guidelines

7. Conclusion and Technical Recommendations

Inside the Loom Jacquard Mechanism

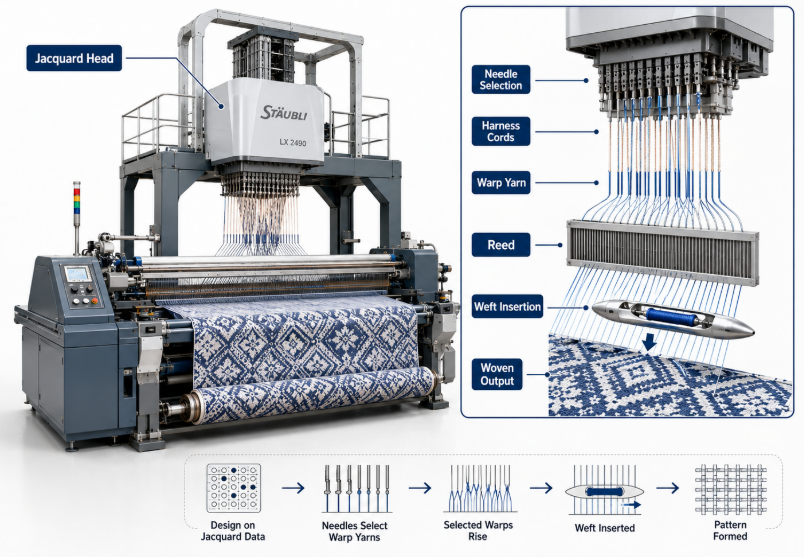

The Jacquard needle loom mechanism operates by converting digital pattern commands into mechanical lifting movements where each individual warp thread is selectively raised or lowered during each shedding cycle.

The fundamental revolution of the Jacquard needle loom lies in its ability to bypass traditional heald frames. In standard dobby weaving, yarns are controlled in grouped frames, limiting complex artistic motifs. In contrast, the modern electronic Jacquard needle loom connects individual warp ends directly to harness cords suspended from selector hooks. When the weaving shaft rotates, a synchronized crankshaft drives reciprocating knife frames upwards and downwards. Electronic solenoids receive signal data from the central computerized control panel, magnetizing or releasing selector latches to determine whether a specific hook engages with the moving knife.

When evaluating why modern machinery uses micro solenoid arrays rather than mechanical punch cards, engineer analysis reveals that electronic solenoid selection increases operating speeds beyond fifteen hundred picks per minute while eliminating mechanical wear on paper cards. Industrial clients in European markets heavily favor modular solenoid modules because individual solenoid boards can be serviced or replaced independently, minimizing machine downtime during high volume production runs. Furthermore, precise electromagnetic timing ensures clean shed opening, which reduces friction between adjacent warp yarns and prevents filament breakage on fine polyester or elastic yarns.

The shedding cycle inside a modern Jacquard needle loom synchronizes five distinct mechanical phases: signal pulse transmission, solenoid latching, hook selection, knife lifting, and harness return spring tensioning. Lower return springs or rubber bands continuously maintain downward tension on harness cords. As the knife frame ascends, selected hooks are lifted against spring tension to create the top shed, while unselected hooks remain supported at the bottom rest position to form the bottom shed. This positive selection mechanism delivers crisp pattern separation, enabling factories to weave high density text, complex brand logos, and intricate double weave structures with absolute precision.

Operational Principle: The complete synchronization between mechanical crank rotation and electronic pulse timing forms the primary foundation for high efficiency Jacquard needle loom operation, preventing shed mispicks and yarn abrasion.

The Formula Behind the Loom Jacquard Mechanism

The repeat width formula for a Jacquard needle loom establishes the exact physical pattern width produced on woven fabric by dividing total available hook capacity by total warp ends per centimeter.

Calculating repeat width is an essential step in pre production warp planning and textile structural engineering. The mathematical relationship governing the physical width of a single pattern repeat is expressed through a standardized mechanical weaving equation. By multiplying the total active hooks available on the Jacquard head by the reed width, and dividing by total warp end density, pattern designers determine exact finished fabric dimensions. Utilizing an advanced high speed automatic jacquard needle loom allows production engineers to maximize hook utilization while maintaining perfect dimensional accuracy across multiple narrow fabric tapes simultaneously.

The primary repeat width calculation formula is defined as follows:

To illustrate this equation in technical detail, consider an industrial narrow fabric application where a Jacquard needle loom head is configured with 192 active hooks. If the woven elastic tape requires a warp density of 48 ends per centimeter and is designed for a single pattern repeat across its width, the calculated repeat width is equal to 192 divided by 48, which yields exactly 4.0 centimeters. If the engineering goal requires a narrower repeat of 2.0 centimeters on the same reed setup, the designer must either increase the reed density to 96 ends per centimeter or utilize a 96 hook pattern setup repeated twice across the fabric width.

European technical buyers place high importance on exact repeat width calculations because automated sewing machines and garment assembly lines require zero variation in logo spacing. When setting up multi tape weaving machines, engineers must also account for yarn crimp percentage and post weave elastic shrinkage. Polyester yarns typically exhibit a crimp factor of two to five percent, whereas natural rubber or spandex elastic warp yarns contract up to twenty five percent after tension release. Adjusting total ends per centimeter within the formula accounts for these material behaviors and guarantees that finished tape width matches buyer specifications.

Mathematical Rule: Always recalculate total active hook distribution whenever changing reed count or yarn denier, as unaligned harness angles cause severe friction and shorten harness cord operational lifespans.

Loom Jacquard Mechanism Interactive Calculator

An interactive repeat width calculator provides automated parameter conversion for Jacquard needle loom operators by processing hook counts, reed density, and warp shrinkage data into instant setup metrics.

Modern textile mills rely on digital calculator interfaces integrated into computerized loom control consoles to prevent manual setup errors. By entering raw variables into an interactive mathematical framework, machine operators obtain immediate setup feedback regarding max pattern repeat dimensions, required reed density, and harness cord loading limits. Incorporating a versatile jacquard needle loom for narrow fabric webbing into digital factory workflows ensures seamless communication between design CAD software and physical loom shedding components.

Developing a full scale digital software module or spreadsheet tool requires incorporating conditional logic algorithms that validate whether pattern designs fit within available machine harness capacities. For example, if a CAD design contains 384 unique warp ends but the Jacquard needle loom head only possesses 192 hooks, the calculator alerts the technician that a hook expansion or pattern drop background adjustment is necessary. Furthermore, advanced algorithms calculate maximum harness cord deflection angles, warning operators if harness cords exceed an eight degree outward tilt angle, which would otherwise accelerate cord guide board wear.

Factories focused on lean manufacturing standards prioritize interactive calculation tools because they dramatically reduce warp setup time during pattern changeovers. B2B clients frequently request custom elastic tapes with variable logo repeating intervals. Using an automated calculator allows floor managers to determine exact warp beam yarn lengths and reed reeding plans in seconds, eliminating trial and error material waste on the loom floor.

Industries That Rely on the Loom Jacquard Mechanism

Key global manufacturing sectors including athletic apparel, safety harness production, automotive upholstery, and medical textiles rely on the Jacquard needle loom mechanism to produce high strength decorative narrow fabrics.

The apparel and footwear industries represent a massive global market for high speed Jacquard needle loom machinery. Premium underwear waistbands, branded athletic waistband elastics, and shoelaces require intricate lettering, multi color patterns, and consistent elasticity. The Jacquard needle loom mechanism enables high speed insertion of silicone threads and metallic yarns alongside conventional nylon or polyester warp yarns. Operating at high shaft speeds while maintaining uniform tension control across all warp threads allows manufacturers to achieve soft skin feel, structural resilience, and clear brand iconography.

In safety equipment and military equipment manufacturing, the structural integrity of Jacquard woven webbing is a critical engineering requirement. Heavy duty cargo straps, fall protection safety harnesses, and tactical gear belts utilize Jacquard shedding devices to weave structural inspection markers directly into high tenacity polyamide webbings. Utilizing a reliable high performance automatic jacquard needle loom machinery ensures that heavy denier yarns up to several thousand decitex are shed cleanly without damaging filament bundles, meeting stringent international safety standards.

Automotive interior designers utilize Jacquard needle looms to weave high aesthetic accent ribbons, seat piping, and functional pulling straps. European automotive standards place strict requirements on light fastness, abrasion resistance, and flame retardancy. The mechanical precision of modern Jacquard needle loom harness setups ensures that technical synthetic yarns receive minimal friction during high speed shedding, preserving yarn tensile strength and coating integrity required by automotive OEM specifiers.

1. Athletic Apparel and Footwear: Production of high elasticity branded waistbands, decorative side tapes, and high strength performance shoe uppers.

2. Occupational Safety and Military Gear: Integration of structural indicator lines, load bearing webbing patterns, and high strength tactical gear bindings.

3. Automotive Interior Trim: Manufacturing of wear resistant seatbelt edges, interior pulled straps, and decorative contrast piping tapes.

4. Medical and Orthopedic Bandages: Fabrication of breathable, variable tension compression tapes and skin friendly brace support straps.

Application Insight: Industrial buyers select specific Jacquard needle loom models based on required ribbon width and warp density, prioritizing rigid frame structures that absorb mechanical vibration during heavy webbing production.

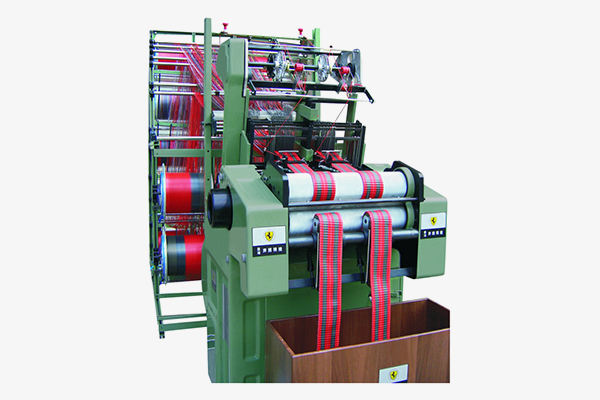

Anatomy and Key Components of the Jacquard Needle Loom

The structural anatomy of a Jacquard needle loom consists of an upper electronic selector unit, harness assembly, harness board, grid knives, and lower spring return modules.

Understanding every component within the Jacquard shedding assembly is essential for optimizing mechanical setup and diagnosing operational wear. At the top of the loom structure sits the electronic Jacquard controller, housing electronic solenoid boards, selector latches, and lifting hooks. Below the selector head, harness cords extend downward through a precision drilled comber board, which distributes individual cords to their corresponding warp line positions across each weaving head position.

The selector hooks are fine steel or composite bars designed to engage with reciprocating knives. When a solenoid remains unenergized, a latch catches the upper tip of the hook, holding it at a stationary position during the knife beam ascent. When the solenoid receives a digital signal, the latch releases, allowing the hook to settle onto the moving knife beam, which lifts the attached harness cord. Attached to each harness cord is a stainless steel heald eye through which individual warp yarns pass. The smooth surface finish of these heald eyes prevents yarn chafing during continuous high speed movement.

At the bottom of the shedding zone, tension return springs or heavy duty elastomeric cords continuously pull harness assemblies downward. This downward force maintains constant warp line tension, preventing harness cord sagging during rapid shedding direction reversals. The structural stability of the frame cast iron chassis prevents harmonic vibration, ensuring that harness cords stay aligned with the holes in the harness guide board even when operating at top speed.

1. Electronic Solenoid Control Array: Receives digital signals from the main central processor to actuate magnetic latches at microsecond intervals.

2. Lifting Hooks and Knives: Mechanical engagement steel bars that transfer vertical stroke motion from the crankshaft to the harness assembly.

3. Harness Cord System: High strength, low stretch synthetic cords that transmit vertical lifting force down to individual yarn heald eyes.

4. Precision Comber Guide Board: Perforated composite panel that maintains exact pitch alignment of harness cords above the warp line.

5. Heald Eye Assembly: Polished steel or ceramic eyelets designed to guide warp yarns smoothly through shed openings without abrasion.

6. Tension Return Springs: High fatigue resistance steel springs located beneath the warp line that draw harness cords back to the rest position.

Technical Maintenance and Operational Guidelines

Proactive technical maintenance for Jacquard needle loom machinery requires routine solenoid cleaning, harness cord tension balancing, guide board dust removal, and precise lubrication.

Maintaining peak efficiency on high speed Jacquard needle looms requires strict adherence to daily, weekly, and monthly service schedules. Dust accumulation represents one of the largest operational risks in textile mills. Airborne cotton fibers, synthetic micro dust, and sizing agents enter solenoid housings and build up on sliding hooks, increasing friction and causing shedding mispicks. Implementing filtered positive pressure air cooling fans inside the electronic Jacquard enclosure prevents lint ingress, extending solenoid life and maintaining fast electrical switching response times.

Harness cord tension management is another vital technical maintenance discipline. Over time, synthetic harness cords undergo natural elastic creep, causing subtle shifts in shed opening height. If harness cords become slack, the bottom shed line drops below the race board level, leading to shuttle interference or needle latch failures. Technicians must conduct monthly shed leveling checks using precision laser alignment tools, adjusting harness cord tie points or spring mounting bars to maintain uniform shed height across all weaving positions.

1. Daily Dust Removal Protocol: Blow down solenoid boards, selector hooks, and comber board surfaces using dry compressed air at two bar pressure.

2. Weekly Lubrication Cycle: Apply specialized synthetic needle oil to reciprocating knife guide slides and crankshaft bearings while checking solenoid heat dissipation fans.

3. Monthly Shed Leveling Audit: Inspect warp shed opening clearance using optical gauge bars, re tensioning loose harness cords and replacing damaged return springs.

4. Quarterly Electrical Inspection: Test solenoid coil electrical resistance values using a digital multimeter, replacing coils showing elevated resistance or thermal damage.

Maintenance Rule: Never use petroleum solvents on composite harness cords or plastic guide board bushings, as harsh chemicals break down polymer structures, leading to sudden cord failure during operation.

Conclusion and Technical Recommendations

Selecting the right Jacquard needle loom requires evaluating total hook capacity, structural frame rigidity, electronic solenoid efficiency, and precision repeat width calculation capabilities.

The Jacquard needle loom mechanism remains an indispensable pillar of modern narrow fabric manufacturing. By harmonizing sophisticated microprocessor controls with heavy duty mechanical shedding motion, these advanced machines allow textile producers to manufacture high value decorative and structural narrow webbing at industrial speeds. Understanding the operational principles inside the Jacquard head, mastering repeat width mathematical formulas, and implementing structured preventative maintenance programs guarantees long term operational efficiency, minimum fabric defect rates, and maximum return on equipment investment.

Manufacturing facilities seeking to expand production capabilities should evaluate machine frame stability, solenoid response speeds, and ease of software integration. Investing in robust Jacquard needle loom technology ensures that textile mills stay competitive, agile, and equipped to meet the evolving design and quality demands of global B2B clients.
