The Complete Guide to Jacquard Needle Loom

A Jacquard needle loom is an advanced narrow-fabric weaving machine equipped with an electronic or mechanical Jacquard mechanism that controls individual warp threads to automatically weave high-precision patterned tapes, elastic bands, ribbons, and technical webbing.

What is a Jacquard Needle Loom?

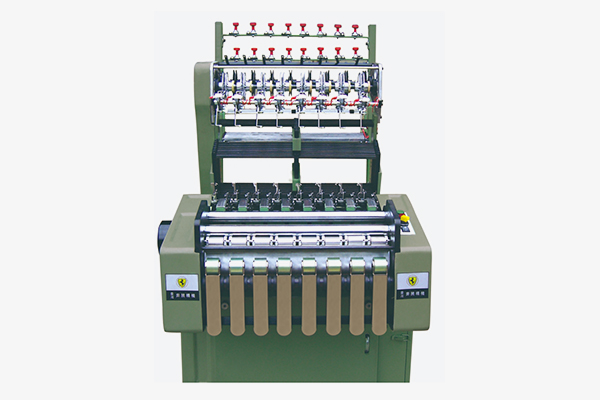

A Jacquard needle loom is a high-speed, shuttleless narrow-fabric weaving machine designed to produce complex patterned tapes, ribbons, elastics, and industrial webbings by controlling each warp yarn independently.

A Jacquard needle loom integrates narrow-fabric needle weaving technology with an advanced electronic or mechanical Jacquard selection head. Unlike conventional needle looms that rely solely on cam boxes or pattern chain links to lift entire shafts of warp yarns, a Jacquard needle loom provides single-end or small-group warp selection. This individual thread control enables textile manufacturers to weave complex geometric patterns, brand logos, letterings, and multi-structure decorative designs directly into narrow fabrics.

The structural framework of a Jacquard needle loom is built to absorb continuous high-speed mechanical vibrations while maintaining extreme precision across multiple weaving heads. These machines typically handle multiple fabric tapes simultaneously, ranging from two to twelve lines depending on tape width and machine width. The high-speed shuttleless principle utilizes a continuous weft insertion needle paired with a latch needle to form a secure catch-stitch along the selvage, ensuring consistent tape edge symmetry and tension.

Modern narrow-fabric production requires extreme flexibility and repeatability. The integration of microprocessor control units and electromagnetic Jacquard heads allows operators to load pattern files digitally via CAD software. This technological progression eliminates length restrictions imposed by traditional mechanical pattern chains, significantly shortening setup times for short-run order switching and customized webbings.

Structural Classification and Technical Metrics

Designing for Durability: European technical textile buyers consistently prioritize frame stability and thermal dissipation in continuous 24-hour operations. To satisfy these operational requirements, heavy-duty structural steel plates are machined with integrated vibration dampeners, and high-wear components are coated with ceramic-tungsten compounds to minimize friction and prevent static yarn build-up.

How Does it Work?

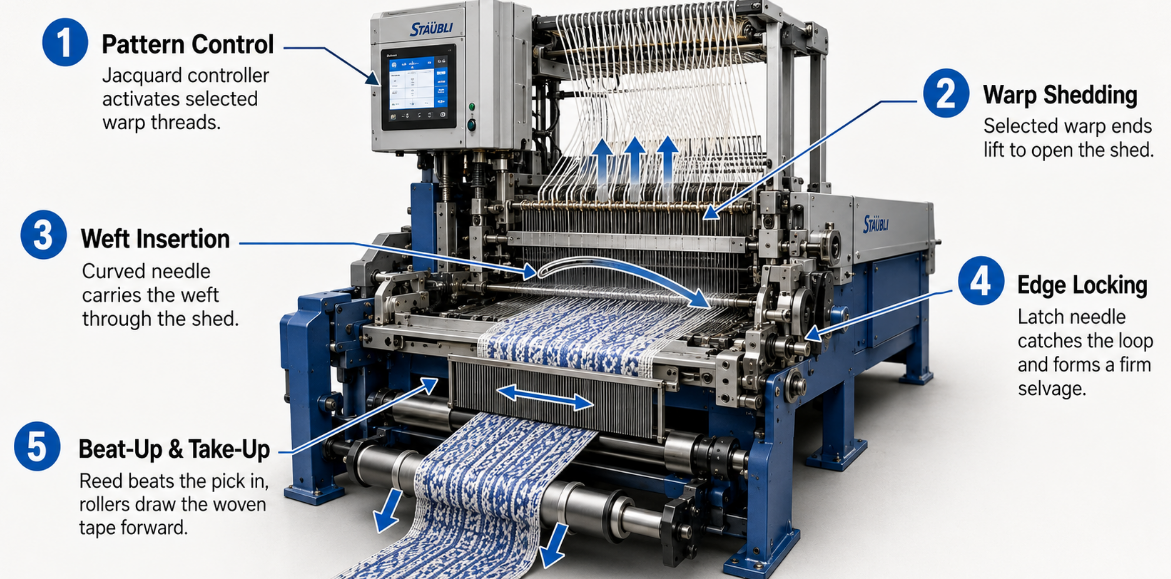

A Jacquard needle loom works by synchronizing electromagnetic warp thread selection with high-speed needle weft insertion to form shed-by-shed patterned narrow fabrics.

The operational cycle of a Jacquard needle loom begins with pattern data processing. Digital pattern files generated by textile CAD systems dictate the precise lifting or resting state of every Jacquard hook for each shed opening. When the main motor drives the central crankshaft, signals are dispatched to the electronic Jacquard controller, activating electromagnetic solenoids. These solenoids push or release selector needles, determining which warp threads are elevated by the harness cords to form the shed clearance.

Once the shed is fully open, the curved weft insertion arm moves horizontally across the warp shed, carrying the weft yarn loop through the open threads. Simultaneously, on the opposite side of the shed, a precision latch needle rises to catch the loop of the inserted weft yarn. As the weft arm retracts, the latch needle pulls the loop through the previous stitch, locking the edge to form a firm, fray-proof selvage structure.

Following selvage locking, the reed moves forward driven by a eccentric cam mechanism to beat up the newly inserted weft pick against the cloth fell. Concurrently, the take-up roller system draws the finished fabric forward at a constant linear speed, matching the required pick density per centimeter. The yarn let-off system supplies continuous, regulated tension across all warp yarns from creel beams, ensuring consistent fabric weight and structural uniformness throughout production runs.

1. Warp Shedding Phase: Solenoid selectors engage harness wires, pulling designated warp ends upwards while unselected ends remain lowered, forming the precise geometric pattern gap.

2. Weft Delivery Phase: The curved needle carries the weft yarn through the open warp shed, ensuring low tension drag on high-filament threads.

3. Edge Stitch Locking Phase: A high-precision latch needle knit-locks the inserted weft loop, preventing unraveling and stabilizing tape width.

4. Beat-Up Phase: The reed swings forward, compressing the inserted pick into the fell of the narrow fabric.

5. Continuous Take-Up Phase: Gear-driven take-up rollers draw the woven tape onto collection rolls under controlled tension.

To explore engineered solutions for narrow fabric production, examine the High-Speed Automatic Jacquard Needle Loom for Narrow Fabric Webbing designed for heavy-duty industrial webbings and decorative tapes.

Why Use a Jacquard Needle Loom?

Using a Jacquard needle loom allows manufacturers to produce intricate, high-value patterned webbings with extreme speed, low waste, and rapid digital design customization.

1. Exceptional Design Flexibility and Detail Resolution

   Jacquard needle looms eliminate the geometric design constraints inherent to mechanical shaft looms. With capability options extending up to 768 hooks or more, designers can incorporate detailed corporate logos, multi-directional typography, complex jacquard floral patterns, and functional structural variations into elastic and non-elastic narrow bands.

2. High-Speed Production Efficiency

   Modern narrow-fabric Jacquard needle looms operate at mechanical speeds reaching up to 1500 picks per minute. The shuttleless needle design eliminates heavy shuttle inertia, allowing continuous high-speed movement without yarn breakage. Multi-space frame layouts enable simultaneous weaving across multiple lines, drastically increasing shift output while minimizing labor requirements per unit of finished fabric.

3. Reduced Mechanical Wear and Easy Maintenance

   Electronic Jacquard mechanisms replace complex mechanical pattern chains, cams, and chain links with direct-drive solenoid switches and high-tensile harness cords. This reduction in moving mechanical parts reduces friction, lowers lubricant consumption, and minimizes mechanical downtime caused by chain link wear or shed alignment failure.

4. Consistent Fabric Quality and Tension Management

   Precision warp let-off controls and electronic yarn tension sensors prevent variations in elastic recovery and width deviation across long production cycles. The steady beat-up motion combined with exact electronic take-up ensures uniform pick densities, which is critical for technical applications like seatbelts, medical slings, and military load-bearing webbings.

Performance Comparison: Jacquard Needle Loom vs. Conventional Mechanical Needle Loom

Main Components of a Jacquard Needle Loom

The main components of a Jacquard needle loom comprise the electronic Jacquard head, harness assembly, weaving frame, weft insertion needle, latch needle, reed, and electronic control system.

1. Electronic Jacquard Selection Head

   Positioned at the top of the machine frame, the electronic Jacquard head houses the electromagnet solenoids, selector hooks, and pulley mechanisms. It receives high-speed signals from the central controller to push or pull individual hooks, determining the lift sequence for every warp thread on each pick cycle.

2. Harness Assembly and Heald Springs

   The harness assembly connects the Jacquard head hooks to the individual heald wires through high-grade synthetic cords. Springs mounted beneath the weaving bed pull the heald wires back down when released by the Jacquard hooks, maintaining constant warp tension during shed closure.

3. Weft Needle and Latch Hook Mechanism

   The curved weft needle swings horizontally to carry the weft yarn into the open warp shed. Synchronized precisely with the weft arm, the latch needle operates along the edge to hook the weft loop, forming a knitted selvage structure that holds the narrow tape together cleanly.

4. Beat-Up Reed and Driving Cam

   The reed is a high-precision steel comb that aligns warp threads and drives the newly inserted weft yarn into the cloth fell. Driven by dual eccentric cams, the reed maintains balanced impact force across all weaving spaces to ensure flat, even fabric surfaces.

5. Warp Let-Off and Tension Control Frame

   The let-off system manages yarn unwinding from creel beams or spools. Positive warp let-off mechanisms utilize tension compensation levers and friction brakes to maintain uniform tension across all warp ends, preventing fabric distortions, uneven elastomeric contraction, or yarn slackness.

6. Fabric Take-Up and Winding System

   Driven by stepless gearboxes or servo motors, the take-up roller assembly pulls the woven fabric away from the weaving bed at a controlled rate. Serrated or rubberized rollers ensure non-slip grip without damaging delicate pattern surfaces or elastic threads.

Primary Component Functions and Material Specifications

Optimizing Mechanical Lifespan: Industrial operators often identify heat generation and fiber dust accumulation as primary causes of premature electronic selector failure. Leading manufacturers address this issue by incorporating pressurized air-cooling systems inside the Jacquard head housing and applying anti-static coatings to all harness guide boards.

Manufacturers seeking precise narrow-fabric machinery can utilize the High-Speed Automatic Jacquard Needle Loom for Narrow Fabric Webbing to streamline production processes and achieve consistent narrow tape quality.

Typical Applications

Jacquard needle looms are widely used in apparel, medical, military, automotive, and industrial technical textile sectors to manufacture patterned narrow fabrics.

1. Garment Elastic Bands and Underwear Webbing

   The apparel sector represents one of the largest markets for Jacquard needle loom production. High-elasticity waistbands featuring knitted brand logos, letterings, and decorative patterns are woven using combination elastic threads such as spandex or rubber cores wrapped in nylon or polyester yarns.

2. Industrial Safety Harnesses and Lanyards

   Heavy-duty Jacquard needle looms weave specialized safety webbings for fall protection, automotive seatbelts, and industrial lifting slings. Jacquard control allows structural indicators or trace lines to be woven directly into load-bearing straps for easy wear inspection and quality tracking.

3. Military and Tactical Load-Bearing Gear

   Tactical equipment, including MOLLE webbing, backpack straps, and military waist belts, utilizes Jacquard needle looms to weave camouflage patterns and specialized non-reflective technical fibers directly into narrow bands without printing inks that could degrade over time.

4. Medical Straps and Orthopedic Supports

   In orthopedic and medical applications, Jacquard needle looms produce breathable, anti-microbial elastic bands for knee supports, compression wraps, and patient restraint systems. The ability to vary weave density within a single continuous strip allows variable compression zones.

5. Decorative Ribbons, Shoelaces, and Luggage Straps

   Fashion accessories, branded shoelaces, gift wrapping ribbons, and heavy-luggage straps rely on Jacquard needle looms for vibrant visual branding and structural durability.

Fabric Characteristics by Application Field

To integrate efficient narrow-fabric production into commercial manufacturing operations, evaluate the High-Speed Automatic Jacquard Needle Loom for Narrow Fabric Webbing for comprehensive production capability.

Technical Summary and Buyer Checklist

Understanding the operational principles, core components, and application requirements of a Jacquard needle loom enables factory managers to optimize production lines and maximize return on equipment investment. Selecting the right configuration depends on tape width requirements, hook capacity needs, yarn types, and long-term production speeds.

Operational Maintenance Rules: Regular maintenance is critical for maintaining Jacquard needle loom accuracy and preventing costly harness failures. Operators must adhere to three core maintenance guidelines: First, clean the electronic Jacquard selector solenoids daily using dry compressed air to remove airborne fiber lint; Second, inspect harness spring tension weekly to ensure uniform shed opening height across all weaving channels; Third, keep latch needles lubricated with specialized light textile oil while monitoring latch hinges for physical wear to prevent dropped selvage stitches.

Prior to selecting new narrow-fabric weaving machinery, technical buyers should verify machine hook counts, frame vibration ratings, controller CAD software compatibility, and local spare parts availability to ensure continuous, high-efficiency output.
