The Jacquard Loom: Revolutionary Technology in Textile Production

The Jacquard Needle Loom represents a monumental technological breakthrough in modern narrow fabric textile production, utilizing computerized shed formation mechanisms, advanced magnetic selectors, and automated yarn feeding systems to produce highly intricate elastic and non-elastic webbings with unmatched precision, economic efficiency, and production velocity across global industrial markets.

Table of Contents

1. Historical Evolution and Mechanical Principles

2. Key Structural Components and Technical Architecture

3. Operational Workflow and Patterning Precision

4. Industrial Applications and Material Versatility

5. Comparative Technical Advantage and Efficiency Metrics

6. Future Technological Innovations and Smart Integration

Historical Evolution and Mechanical Principles

The historical advancement of narrow fabric shedding mechanisms transitioned from manual drawlooms to punch-card automation and ultimately to modern digital Jacquard Needle Loom engineering, enabling seamless high-speed production of complex jacquard patterns on narrow webbings.

The origin of complex pattern formation in textile manufacturing dates back to early drawlooms, where manual operators individually raised warp threads to form intricate patterns. The introduction of Joseph Marie Jacquard's punch-card mechanism in the early nineteenth century replaced manual thread manipulation with binary mechanical selection, laying the foundational logic for modern digital Jacquard Needle Loom automation. In narrow fabric production, this principle underwent further refinements to accommodate high-velocity needle insertion mechanisms rather than traditional shuttle traversal systems. The contemporary Jacquard Needle Loom replaces bulky mechanical punch cards with electromagnetic solenoids and microprocessors, allowing thousands of warp control hooks to operate independently at speeds exceeding fifteen hundred rpm.

The integration of electronic shed selection with high-speed Jacquard Needle Loom shedding transformed the narrow fabric sector by eliminating mechanical constraints related to pattern length and warp repeat limits. Modern industrial textile mills require flexible Jacquard Needle Loom manufacturing setups where pattern changes can be executed instantaneously via digital software files. Through precise electromagnetic impulse control, each warp yarn end is manipulated to create crisp structural boundaries between woven warp threads and pick insertions. This digital Jacquard Needle Loom shedding mechanism ensures consistent warp tension distribution, minimized yarn friction, and structural stability across complex elastic and rigid webbing constructions.

Engineers designing high-efficiency Jacquard Needle Loom machinery prioritize shedding geometry optimization to reduce thread fatigue during high-speed operations. Modern machine architectures utilize lightweight aluminum alloy shed frames coupled with balanced crank drives, ensuring smooth mechanical motion without excessive vibrational harmonics. European manufacturing clients increasingly specify low-energy Jacquard Needle Loom servo motor drives paired with high-torque shedding cams to maintain stable performance during continuous multi-shift production runs. By standardizing yarn guide paths and minimizing friction points, the modern Jacquard Needle Loom achieves exceptional reliability across synthetic and natural fiber processing.

Working Principle (Shedding and Selection Kinetics): The computerized Jacquard Needle Loom controls warp lifting through individual electromagnetic selectors that engage or disengage mechanical lifting hooks during each Jacquard Needle Loom shed cycle, allowing infinite design variability across narrow fabric structures without physical pattern chains.

Key Structural Components and Technical Architecture

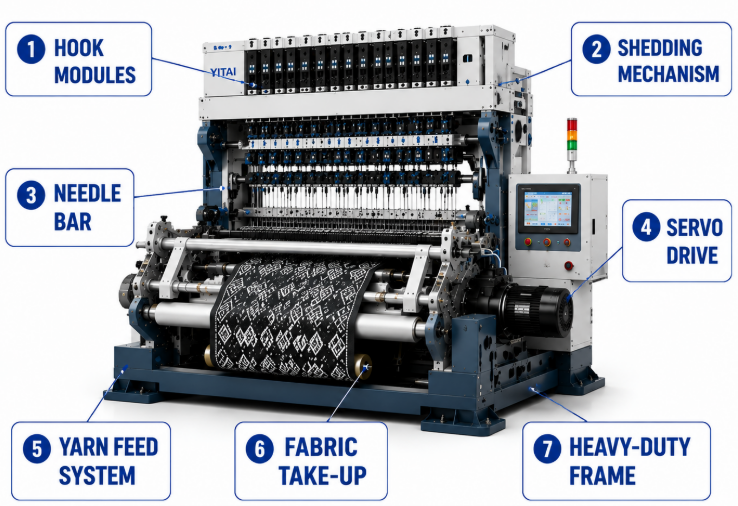

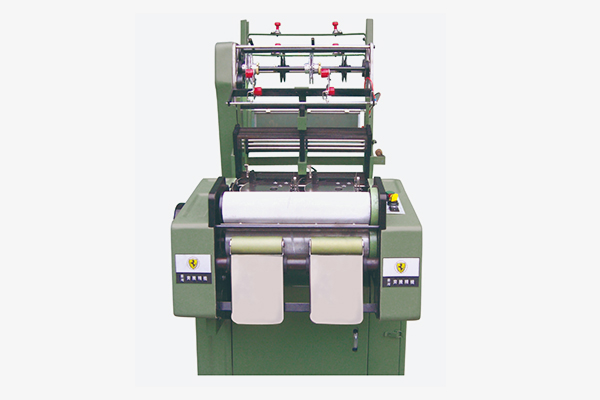

The structural architecture of a high-performance Jacquard Needle Loom combines heavy-duty vibration-damping cast frames, precision electronic hook modules, balanced shedding cranks, automatic latch needle drives, and intelligent yarn feed systems.

At the core of the Jacquard Needle Loom main drive shaft sits a low-center-of-gravity cast iron base designed to absorb high-frequency dynamic forces generated during high-speed weaving cycles. Mounted directly onto this base is the main drive shaft, driven by an inverter-controlled AC servo motor that provides smooth acceleration, variable speed control, and instant braking capabilities. The overhead Jacquard Needle Loom shedding mechanism houses high-frequency Jacquard Needle Loom solenoids. These electronic modules convert digital binary signals into physical selector latch positioning, dictating whether individual Jacquard Needle Loom warp ends are elevated or remain at the bottom shed position during needle traversal.

The reed and needle motion assembly consists of precision-ground Jacquard Needle Loom steel latch needles, weft catch needles, and reciprocating reed blades synchronized through closed-loop mechanical cam gearings. Warp threads pass through high-density Jacquard Needle Loom drop wires connected to sensitive electromechanical break sensors that instantly trigger machine stoppage upon thread fracture. The yarn feeding architecture integrates positive Jacquard Needle Loom yarn feeders for elastic threads and specialized tension compensators for rigid synthetic yarns. Incorporating High-Speed Automatic Jacquard Needle Loom systems ensures optimum Jacquard Needle Loom structural alignment between shedding levers and latch needle strokes, maximizing production yield across diverse textile requirements.

Client feedback from global manufacturing plants indicates that structural component durability directly correlates with operational profitability. European narrow fabric producers prioritize module modularity, demanding electronic Jacquard Needle Loom selector boards that can be swapped without disassembling overhead harness structures. Furthermore, engineers specify specialized ceramic coatings on thread guide eyes and tension bars to prevent grooving caused by abrasive synthetic yarns like high-tenacity polyester and aramid fibers. These structural enhancements drastically lower long-term maintenance costs while preserving pattern resolution across prolonged production schedules.

Maintenance Precautions (Lubrication and Calibration): Regularly check automatic oil circulating pumps and clean lint accumulation from electromagnetic selector solenoids using dry compressed air every forty-eight operational hours to prevent selection lag and mechanical binding.

Operational Workflow and Patterning Precision

The operational sequence of a Jacquard Needle Loom encompasses digital design rendering, warp threading and tension calibration, electromagnetic shedding selection, high-speed needle loop insertion, and controlled continuous fabric take-up.

The manufacturing process begins in specialized CAD software, where textile designers create intricate graphic motifs and define weave structures such as satin, twill, or double-weave configurations. The design file is converted into binary machine code that controls solenoid activation timing. Once loaded into the loom controller, warp yarns drawn from Jacquard Needle Loom beam stands pass through Jacquard Needle Loom drop wire assemblies before entering individual Jacquard Needle Loom harness cords connected to the electronic Jacquard unit. Precise Jacquard Needle Loom warp tension balancing is critical prior to initiating production runs to avoid pattern distortion or uneven fabric edges.

Upon initiating the weaving cycle, the drive shaft rotates, driving the overhead mechanism to open the Jacquard Needle Loom warp shed according to the programmed pattern file. Simultaneously, the Jacquard Needle Loom weft insertion arm carries binder yarn through the opened shed, where the Jacquard Needle Loom latch needle hooks the catch thread to secure the edge loop. As the shed closes, the reed sways forward with high kinetic force to pack the newly inserted pick tightly against the Jacquard Needle Loom fabric fell. The finished webbing then passes over knurled Jacquard Needle Loom take-up rollers driven by precision gear trains, ensuring uniform pick density throughout the continuous strip.

Achieving high patterning precision requires complete synchronization between mechanical needle stroke frequency and electronic solenoid firing speed. Modern high-speed units utilize optical encoder feedback on the main motor shaft to continuously track crankshaft angular position down to fractions of a degree. This real-time positioning feedback enables the controller to adjust selector pulse timing dynamically, preventing dropped picks or mis-patterning even during rapid speed changes. Installing an advanced Jacquard Needle Loom for Narrow Fabric Webbing allows manufacturers to produce intricate corporate logos, anatomical symbols, and complex geometric motifs on elastic and rigid tapes with razor-sharp edge definition.

Tips for Optimal Operation: Verify Jacquard Needle Loom harness cords tension elasticity periodically using digital tension gauges, ensuring that all individual cords maintain identical return tension to prevent harness sagging and misplaced shed openings during rapid speed shifts.

Industrial Applications and Material Versatility

The Jacquard Needle Loom exhibits unmatched material versatility, producing specialized elastic and non-elastic narrow fabrics for medical apparel, automotive safety systems, military webbing gear, and fashion undergarments.

In the medical textile sector, precision-woven elastic bands with integrated brand logos or anatomical sizing indicators are widely used in compression bandages, orthopedic supports, and surgical wear. The ability of the Jacquard Needle Loom to process biocompatible synthetic fibers alongside elastomeric threads without damaging delicate filament structures makes it indispensable for medical textile producers. These applications require strict dimensional stability, smooth Jacquard Needle Loom tactile properties, and repeatable elasticity curves, all of which depend on consistent shed formation and precise weft tension control during the weaving process.

The industrial and protective safety equipment sector relies heavily on heavy-duty non-elastic narrow fabrics manufactured on specialized heavy-frame machinery. Load-bearing climbing slings, automotive seat belts, cargo tie-down straps, and military tactical harnesses require ultra-high tensile strength and abrasion resistance. Utilizing high-tenacity nylon, ultra-high-molecular-weight polyethylene, or aramid fibers, the Jacquard Needle Loom can integrate structural identification stripes, load-bearing indicator weaves, and high-visibility motifs directly into dense Jacquard Needle Loom webbing structures without compromising overall Jacquard Needle Loom breaking strength.

In consumer apparel and fashion industries, Jacquard-woven elastic waistbands represent a high-volume, high-value product category. Major sportswear and underwear brands demand intricate multi-color lettering, soft-touch plush backing, and consistent recovery elasticity across millions of meters of product. Industrial apparel manufacturers favor versatile loom setups capable of rapid Jacquard Needle Loom pattern changeovers to keep pace with fast-changing fashion cycles. Utilizing an industrial-grade Automatic Narrow Fabric Webbing Loom allows producers to combine multiple yarn colors, varying thread counts, and specialized surface finishes on multi-space Jacquard Needle Loom production lines simultaneously.

Working Principle (Multi-Bar Yarn Feeding): For multi-color jacquard patterns, warp yarns are managed via dedicated multi-tier creels equipped with individual disc tensioners, allowing distinct tension settings for varying yarn counts and material elasticities across the same fabric strip.

Comparative Technical Advantage and Efficiency Metrics

The technical advantages of modern Jacquard Needle Loom machinery over traditional weaving equipment center on significantly higher production speeds, reduced labor intensity, minimal waste generation, and superior pattern flexibility.

Quantitative analysis of textile manufacturing metrics reveals that automated Jacquard Needle Loom systems increase production efficiency by three hundred to five hundred percent compared to traditional non-Jacquard Needle Loom machines. Traditional shuttle systems are inherently limited in Jacquard Needle Loom rotational speed due to the physical momentum of shuttle traversal across the warp shed. In contrast, Jacquard Needle Loom needle insertion mechanisms execute continuous Jacquard Needle Loom rotary-to-reciprocating motions with minimal dynamic mass, enabling operational speeds up to eighteen hundred RPM per tape head. This drastic speed improvement allows manufacturers to meet tight delivery schedules while reducing total factory footprint requirements.

From an economic perspective, digital Jacquard Needle Loom systems drastically reduce labor setup costs associated with pattern changes. Mechanical Jacquard Needle Loom shedding systems required manual pin changing, chain link assembly, or physical punch card switching, taking skilled technicians up to eight hours per style change. Modern microprocessor-driven Jacquard Needle Loom equipment loads new pattern parameters electronically within seconds, enabling short-run customized production orders to become commercially viable. Furthermore, automated yarn sensor networks instantly stop machine operation upon yarn breakdown, preventing long runs of defective fabric and minimizing expensive yarn waste.

Global buyer preferences demonstrate a clear shift toward energy-efficient, low-noise machinery that satisfies stringent environmental standards. European clients in particular analyze life-cycle Jacquard Needle Loom energy consumption per meter of finished webbing. Modern loom designs incorporate regenerative Jacquard Needle Loom braking systems and lightweight carbon fiber shedding levers, reducing electrical power consumption by up to twenty-five percent compared to previous generation models. These engineering refinements ensure that high-velocity production does not come at the cost of excessive thermal generation or high operational energy overhead.

Maintenance Precautions (Harness Cord Inspection): Inspect harness cords for wear, fraying, and static charge accumulation weekly; apply antistatic sprays and replace worn leveling springs immediately to maintain equal harness returning speeds across high-hook count heads.

Future Technological Innovations and Smart Integration

Future innovations in Jacquard Needle Loom technology focus on artificial intelligence integration, optical Jacquard Needle Loom quality inspection, dynamic tension monitoring, and sustainable green manufacturing processes.

The transition toward Industry 4.0 smart factories is reshaping narrow fabric production environments. Modern Jacquard Needle Loom systems are increasingly equipped with embedded Jacquard Needle Loom IoT telemetry sensors that monitor machine vibration, bearing temperatures, motor current draw, and total pick counts in real time. Cloud-connected control units process this telemetry data using predictive algorithms, alerting maintenance teams to potential mechanical component degradation before catastrophic failure occurs. This predictive Jacquard Needle Loom maintenance architecture minimizes unplanned downtime and optimizes spare parts inventory management for large-scale textile operations.

Artificial intelligence and machine vision technologies are also being integrated directly into the shedding area of high-speed looms. High-resolution line-scan Jacquard Needle Loom camera arrays paired with edge AI processors inspect woven tape surfaces continuously as the fabric exits the reed zone. The vision system automatically detects defects such as dropped picks, yarn slubs, mis-patterning, or oil stains, logging defect coordinates and instantly adjusting warp tension or stopping the machine if defect thresholds are exceeded. This automated quality assurance eliminates the need for manual post-weaving inspection, drastically improving overall product quality assurance scores.

Sustainability considerations are driving material and drive-train design innovations. Modern narrow fabric producers are incorporating recycled PET Jacquard Needle Loom yarns, biodegradable PLA fibers, and natural organic threads into their production lines. Machinery engineers are responding by developing ultra-gentle thread guide geometry and dynamic magnetic tensioning systems that handle brittle or irregular eco-friendly yarns without breaking. Furthermore, direct-drive Jacquard Needle Loom permanent magnet motors coupled with direct-drive shedding heads continue to lower kilowatt-hour consumption per kilogram of produced webbing, aligning textile machinery performance with global carbon reduction initiatives.

Working Principle (Smart Closed-Loop Tensioning): Smart Jacquard Needle Loom closed-loop tensioners continuously measure individual yarn drag force using piezoelectric crystal sensors, sending real-time digital feedback to servo tension brakes that dynamically adjust thread resistance hundreds of times per minute during high-speed shed changes.
