What is Braiding?
Types of Braids
Materials Used in Braiding
Features of Braided Fabrics
Applications of Braided Fabrics
Key Players in the Braided Fabric Industry
Braiding is a textile manufacturing process where three or more strands of material are interlaced in a diagonal pattern to form a continuous, stable, and flexible structure.

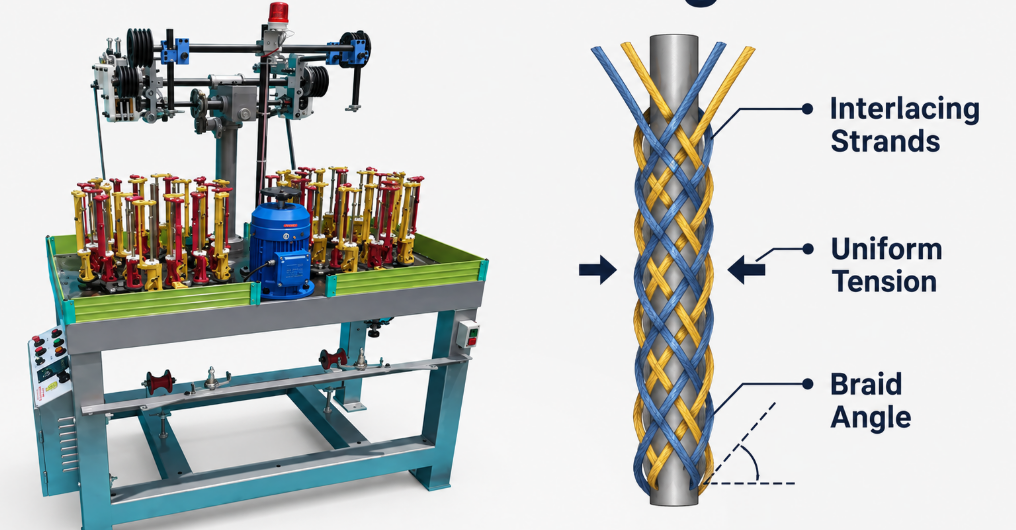

At its core, the braiding process relies on the precise management of fiber paths. Unlike weaving, which uses orthogonal interlacings, or knitting, which relies on loops, braiding creates a diagonal orientation (bias angle) that is uniquely resistant to deformation. From my experience managing high-end production lines, the efficiency of this process is heavily dependent on the Vertical Braiding Machine utilized. This equipment ensures that tension remains uniform across every carrier, a requirement that is paramount when dealing with high-modulus materials or fine filaments.
The physics of braiding involves the controlled movement of yarn carriers along a track. These carriers cross over and under one another, creating a lock-stitch effect that prevents unravelling if a single strand breaks—a feature that makes braided structures exceptionally reliable. Whether we are producing thin-walled hose reinforcements or heavy-duty industrial ropes, the fundamental logic remains the same: the angle of intersection (the braid angle) dictates the mechanical trade-off between radial expansion and axial stiffness.
In modern manufacturing, the move toward automation is driven by the need for speed and consistency. When our engineering teams calibrate a Vertical Braiding Machine, we are essentially programming the mechanical "memory" of the fabric. This precision allows us to meet strict tolerances in industries where performance failure is not an option. From the perspective of our European clients, in particular, there is a strong preference for equipment that offers modularity and real-time tension monitoring to ensure the highest grade of braid uniformity.
Technical Aspect | Description |
Core Mechanism | Interlacing of multiple carriers in a bias configuration |
Primary Variable | Braid angle (relative to the axis of the mandrel) |
Driving Force | Carrier speed, take-up speed, and tension control |
Key Benefit | Superior fatigue resistance and dimensional stability |
Design Optimization Principles: The geometry of the braid must be matched to the operational load. For high-pressure hose protection, a tighter braid angle is essential to prevent internal expansion; for flexible cabling, a shallower angle is preferred to maintain flexibility.
Braids are primarily classified by their geometric construction and the orientation of the interlaced strands, which directly determines their load-bearing capacity and flexibility.
Vertical braids are constructed using advanced machinery where the carriers operate in a vertical orientation relative to the mandrel. This configuration is widely regarded as the gold standard for high-performance sleeve and cable shielding. Our high-performance Advanced Shielding Braiding System demonstrates how vertical carrier paths allow for faster cycle times without compromising the delicate geometry of the shielding filaments. In my professional practice, I have found that this design is favored when high density and low permeability are required for electromagnetic shielding.
Round braids are characterized by their cylindrical cross-section, making them ideal for ropes, cords, and tubular reinforcements. The structure is formed by interlacing strands around a circular path. For those looking to optimize for high-speed production of such geometries, utilizing a Dual-Head High-Speed Rope Braiding Machine is essential to maintain cost-efficiency while ensuring that the fibers are tightly packed and uniform. These braids are highly prized for their ability to manage axial tensile forces while maintaining a small footprint.
Flat braids provide a wider surface area and are commonly used in electrical grounding straps, decorative tapes, and textile reinforcements where profile height is a constraint. The construction involves oscillating carriers on a flat track. The key advantage here is the increased coverage per unit of material, which is critical in applications like automotive wiring harnesses where space is at a premium. These structures are designed to be flexible in one direction while remaining rigid in the transverse direction.
The selection of materials for braiding depends entirely on the end-use environment, ranging from biocompatible natural fibers to advanced synthetic polymers and high-temperature metal filaments.
Historically, natural fibers like cotton, linen, and silk were the backbone of the industry. While their use is limited today in extreme high-performance applications, they remain relevant in sectors requiring breathability and eco-friendly attributes. In our current landscape, these are primarily utilized in specialized cordage and decorative textile engineering where the tactile quality of the material is just as important as the structural integrity.
Synthetic fibers such as polyester, nylon, and polypropylene dominate the industrial market. These materials are engineered for high tensile strength, UV resistance, and chemical durability. From a technical standpoint, the choice of synthetic fiber often revolves around the melt index and tenacity. For instance, when setting up a High-Speed Hose Protection Braiding System, we select polymers that offer the best balance between friction coefficient and abrasion resistance to ensure the longevity of the reinforced hose.
Specialty fibers, including carbon, aramid (Kevlar), stainless steel, and glass, are reserved for the most demanding environments. These materials often exhibit specific heat resistance or conductivity traits. Working with these fibers requires sophisticated machinery, as the lack of elongation in materials like carbon fiber requires the [Vertical Braiding Machine] to have extremely precise tension control to avoid filament breakage during the process.
Material Class | Key Property | Typical Industrial Application |
Polyester | High Tensile Strength | Automotive hoses |
Carbon Fiber | Extreme Rigidity | Aerospace structures |
Stainless Steel | EMI Shielding | Telecommunication cables |
Aramid | Heat/Impact Resistance | Protective gear/ropes |
Braided fabrics are engineered for structural excellence, offering a unique combination of torsional stiffness, flexibility, and consistent load distribution that other textile methods cannot replicate.
The primary feature of a well-engineered braid is its ability to handle dynamic loads. Because the fibers are placed at a bias angle, the structure can dissipate stress across a larger surface area rather than concentrating it at a single point. This is why braided reinforcement is the preferred choice for high-pressure systems. Our observations in the field indicate that clients consistently prioritize torque resistance and shape retention; a fabric that deforms under pressure is a liability in precision engineering.
Furthermore, braided fabrics offer a degree of "programmability." By adjusting the carrier count (the number of strands) and the take-up speed, we can manipulate the braid angle in real-time. This allows us to create gradient structures where the braid is denser at one end to provide higher support and looser at the other to increase flexibility. This level of control is a key point of discussion during our technical consultations with industrial partners.
Finally, the integrity of the braid is paramount. Unlike woven textiles that can suffer from yarn slippage, the lock-stitch nature of a braid means that even if a single strand is cut or compromised, the surrounding structure remains intact. This fail-safe characteristic is a primary driver for the adoption of braided materials in critical infrastructure, such as fiber optic conduits and high-pressure hydraulic lines.
Braided fabrics serve as essential components in a vast array of high-stakes industries, providing critical reinforcement, protection, and structural support.
The versatility of braided fabric applications is expansive. In the automotive sector, braided hoses are standard for fuel lines and brake systems, where they must withstand immense internal pressures while remaining flexible enough to absorb engine vibration. Similarly, in telecommunications, shielding layers provided by braided metal strands are crucial for protecting sensitive data against electromagnetic interference (EMI).
In the aerospace and medical industries, the requirements become even more stringent. We often see requests for ultra-lightweight carbon fiber braids to replace heavy metal components, or biocompatible polymer braids for medical catheters. The common thread here is the need for precision. When deploying a Vertical Braiding Machine for these sectors, the focus shifts entirely to micro-precision and zero-defect production cycles, as even a minor deviation in the braid pattern can compromise the performance of the entire medical device or aircraft component.
Automotive: Fluid transport hoses, cable shielding, wire harness protection.
Aerospace: Composite structural reinforcement, thermal insulation sleeves.
Medical: Vascular stents, catheters, and surgical sutures.
Telecommunications: Signal interference protection, cable jacketing.
The landscape of the braided fabric industry is defined by innovation in automation, where the focus has shifted toward high-speed, precision, and reliable manufacturing equipment.
Success in this industry is no longer just about the textile itself, but about the machinery that creates it. Key players in the space are those that have moved toward integrated smart systems. As a specialist in this field, I observe that the most successful companies are those that invest in modular Vertical Braiding Machine technology. These machines provide the flexibility to switch between different materials and braid patterns without extensive downtime, which is a major pain point for our clients in high-volume production environments.
Actual market trends show a significant push toward "intelligent" braiding. This involves the integration of sensors that detect yarn tension, breakage, and speed fluctuations in real-time. Clients in European and North American markets are particularly focused on Industry 4.0 compliance, demanding equipment that can communicate with their existing factory management software. The ability to monitor a production run remotely and predict maintenance needs is now a standard requirement rather than an optional add-on.
Ultimately, the key to staying relevant in this industry is the ability to provide complete technical solutions. It is not sufficient to provide a machine; one must provide the process expertise to go with it. Whether it is through optimizing the carrier speed on a Dual-Head High-Speed Braiding Machine or refining the take-up tension, the value lies in the technical support and the consistent performance of the hardware under rigorous industrial conditions.
Industry Tip (Process Reliability): To maintain maximum operational longevity of your equipment, implement a strict lubrication schedule for carrier tracks and ensure that tension calibration is performed at the start of every production batch to prevent fiber degradation and ensure braid uniformity.
In summary, the field of braided fabrics represents the convergence of traditional textile arts and high-end industrial engineering. As we continue to push the boundaries of what is possible with materials like high-tenacity synthetics and advanced composites, the importance of precise, high-speed, and reliable machinery becomes increasingly clear. Whether you are dealing with high-pressure fluid conveyance or sensitive signal shielding, the performance of the final product hinges on the intelligence built into the braiding process itself. By focusing on quality, automation, and technical mastery, we can continue to advance the capabilities of braided materials to meet the ever-evolving demands of the global industrial market.
