Does your production line struggle with inconsistent pitch or sudden tension drops? Scaling up output frequently exposes hidden flaws in outdated mechanical setups. As a manufacturing engineer, I have seen firsthand how minor component wear can lead to catastrophic quality control issues. In this comprehensive guide, we will break down exactly how an industrial braider operates from the ground up. We will explore the core mechanical components, dive into the step-by-step intertwining process, and provide actionable, shop-floor insights to help you choose the right equipment to scale your operations efficiently.
Component Synergy: A successful production run relies on the seamless, synchronized interaction between bobbin carriers, horn gears, and tension controllers to produce flawless, high-strength structures.
Operational Efficiency: Understanding the specific mechanical functions of each part helps operators troubleshoot errors on the fly. This directly reduces material waste and minimizes costly downtime.
Auxiliary Impact: Pairing your core machinery with the appropriate auxiliary equipment—such as automated pay-off units and synchronized spoolers—can exponentially boost overall manufacturing yield.
Buying Smart: Equipment selection depends heavily on your target material and volume. Upgrading to high-speed, multi-head configurations is now the industry standard for scaling technical textiles and precision cords.
At its core, an industrial braiding machine is a specialized, mechanized device designed to intertwine three or more strands of flexible materials. Whether you are processing delicate medical-grade polymers, high-tenacity synthetic fibers, or rigid copper wire, the equipment weaves these individual filaments into a structurally sound, diagonally overlapping pattern. This continuous overlapping creates a final product that boasts exceptional tensile strength, flexibility, and resistance to abrasion.
The history of this technology traces back to traditional Maypole braiding. This was originally a manual process where individual bobbins were passed over and under one another in a circular dance. Over the decades, engineering advancements have transformed this basic concept into today’s fully automated, high-speed manufacturing systems. Modern equipment utilizes advanced metallurgy, precision-machined tracks, and digital control systems to execute thousands of intertwining movements per minute with virtually zero margin for error.
Furthermore, looking at current manufacturing trends, there is a clear and accelerated pivot toward automated, data-driven production lines. The rising global demand for lightweight composite materials in aerospace, alongside high-density technical textiles for safety gear, dictates tighter dimensional tolerances than ever before. Facilities are rapidly moving away from legacy mechanical systems in favor of digitally integrated platforms equipped with real-time tension monitoring. Consequently, investing in modernized equipment is no longer just an optional upgrade—it is a critical requirement to remain competitive and meet the stringent compliance standards of modern supply chains.
To fully grasp how these systems achieve such high levels of precision, you must break down the anatomy of the equipment. The following components represent the critical mechanical and digital elements that drive the entire factory floor process.
The bobbins and their respective carriers—often referred to as spindles—are the foundational moving parts of the system. Bobbins are cylindrical spools that hold the raw material. The bobbin carrier is the mechanism that holds the bobbin securely in place while transporting it along the machine's track plate. In practical terms, the function of the carrier goes far beyond simple transportation. It is intricately designed to release the raw material at a highly controlled rate. If an operator hears a distinct rattling sound during production, it often points to a poorly balanced carrier. The centrifugal forces generated during high-speed rotation can cause such imbalances to snap the material or vibrate excessively, leading to immediate structural defects.
The track plate and horn gears act as the navigational system for the bobbin carriers. The track plate is a heavy-duty, precision-milled metal surface featuring intricate, serpentine grooves. These grooves define the exact physical pathway the carriers must follow. Beneath or within this plate sit the horn gears—notched, circular gears that rotate and physically propel the bobbin carriers from one slot to the next.
As the horn gears turn, they pass the carriers back and forth in a synchronized figure-eight or circular motion. The specific configuration and timing of these gears determine the final structure of the product. Even a single millimeter of wear on these gears can cause catastrophic carrier jams, which is why premium metallurgy is essential.
Maintaining consistent tension is arguably the most critical physical parameter you will manage. The tension control system typically consists of a series of calibrated springs, mechanical levers, and guide eyelets integrated directly into the bobbin carrier. As the raw material is pulled from the bobbin, it passes through this system to absorb the kinetic shock caused by the rapid, erratic movements of the carriers.
If the tension is too loose, the final product will suffer from "birdcaging"—a severe defect where strands bulge outward, ruining the structural integrity. Conversely, if the tension is too tight, the raw material stretches beyond its yield point and breaks. Uniform tension ensures a tight, high-quality, and dimensionally stable structure.
Once the individual strands converge, the finished product must be continuously removed from the braiding area to make room for the next weave. This is the role of the take-up mechanism, which utilizes a capstan or haul-off wheel. This component grips the finished cord and pulls it away at a strictly regulated speed. The mathematical ratio between the braiding speed and this take-up speed dictates the "pitch" of the braid. A slower take-up speed results in a highly dense, tight braid, whereas a faster take-up speed produces a looser, more flexible product.
Observing these components in motion reveals the true engineering behind the process. The operation follows a strict, four-step sequence that transforms raw spools into finished industrial products.
Step 1: Material Feeding. The process begins at the bobbins. Raw materials are drawn upward through the carrier’s guide eyelets. The tension system engages immediately, ensuring that the yarn or wire is perfectly taut before the primary motor even initiates rotation.
Step 2: The Intertwining Process. Once activated, the horn gears begin their rhythmic movement, initiating the core weaving action. Half of the bobbin carriers are driven clockwise, while the other half move counter-clockwise. The track plate forces these two opposing sets of carriers to weave in and out of one another's paths, physically displacing and intertwining the strands.
Step 3: The Braid Point Convergence. All the individual strands travel upward at a precise angle, meeting at a single apex known as the braiding point. This spatial coordinate is where the individual fibers lock together. A sizing die is often placed here to ensure the outer diameter remains perfectly uniform.
Step 4: Winding and Spooling. As the geometric structure forms, the take-up mechanism pulls it upward and away. The finished product is routed through a series of guide pulleys and neatly wound onto a final collection spool, ready for post-processing or immediate shipping.
The industrial market offers several distinct architectures, each engineered to handle specific materials and floor-space requirements. Choosing the wrong architecture will severely bottleneck your output.
Machine Type | Mechanical Principle | Best Suited For | Production Speed |
|---|---|---|---|
Traditional Maypole | Track-and-gear serpentine movement. | General ropes, standard textiles, shoelaces. | Moderate (150 - 250 RPM) |
Rotary / Shielding | Two concentric rings rotating in opposite directions. | Wire & Cable, coaxial shielding, metallic hoses. | High (Ideal for rigid wires) |
Multi-Head High-Speed | Multiple independent tracks mounted on a single heavy-duty frame. | High-density technical textiles, precision safety cords. | Very High (300+ RPM per head) |
For facilities looking to maximize output without expanding their physical footprint, multi-head configurations are the optimal choice. Investing in a high-speed braiding machine effectively doubles production capacity. Engineered with reinforced materials to withstand continuous, high-RPM operations, they are the gold standard for manufacturing high-density technical textiles where speed and structural integrity are non-negotiable.
A primary manufacturing unit rarely operates in isolation. To achieve maximum Overall Equipment Effectiveness (OEE) and protect the lifespan of the core machinery, facilities must integrate specialized auxiliary equipment.
Preparation is critical. Pre-braiding equipment, such as automated pay-off units and winding machines, transfers raw materials from bulk shipping containers onto individual bobbins. Proper pre-winding ensures the material is layered evenly with uniform tension, drastically reducing the risk of mid-production tangles.
In addition, once the product leaves the take-up mechanism, post-braiding technology takes over. Automatic spoolers ensure the finished cord is wound without crushing its newly formed structure. Inline measuring devices and automated cutters can be programmed via the PLC to slice the product into exact lengths. Integrating these add-ons yields a measurable return on investment by reducing manual labor costs and minimizing machine downtime caused by material jams.
Procuring industrial machinery requires a calculated approach based on empirical data, material science, and production targets. Selecting the wrong equipment leads to excessive maintenance costs and substandard product quality. Here is how to evaluate your next purchase like a seasoned engineer.
The first and most crucial step is assessing your material specifications. Different materials exhibit varying coefficients of friction and tensile strengths. Braiding delicate aramid fibers requires highly sensitive tension springs and smooth ceramic guides to prevent fraying. Conversely, working with tough metallic materials demands robust, wear-resistant bobbin carriers and heavy-duty track plates capable of handling high rotational forces.
Next, determine your production volume and scalability. Facilities requiring high-output continuous production must look beyond traditional single-head configurations. The mathematical relationship between machine RPM and linear output means single-head machines eventually hit a mechanical limit.

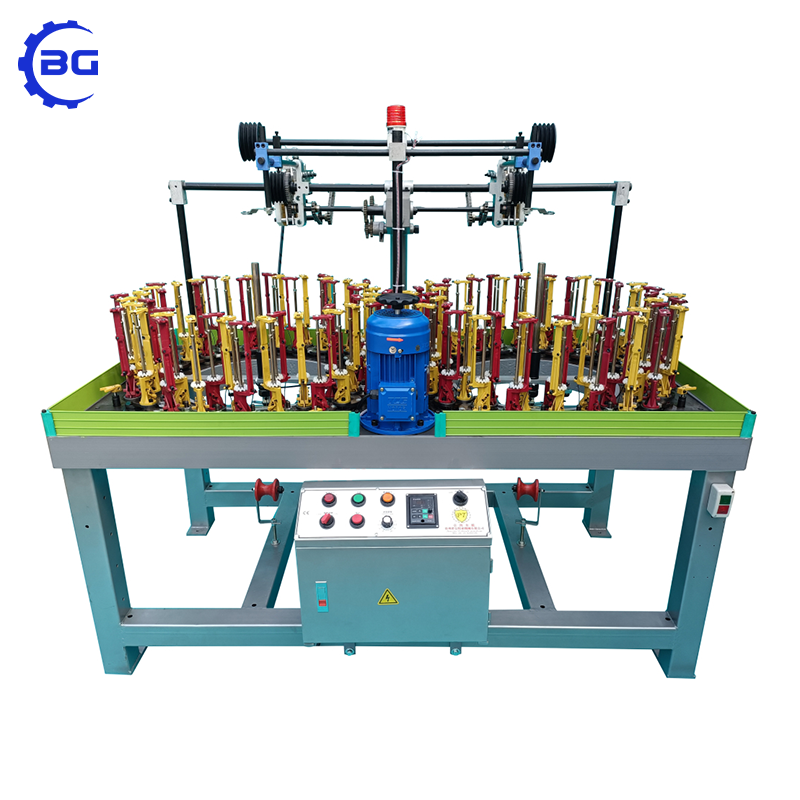

Specifically, to scale up safely, you need to look at concrete equipment parameters. For example, the 2-head braiding machine configuration is highly regarded in the industry for doubling output while maintaining a compact footprint. Models like the POC-2-48A are engineered with a 48-carrier dual-head setup, utilizing advanced inverter speed control and automatic yarn-break sensors. This ensures that even at maximum RPM, the pitch remains perfectly consistent and the machine halts instantly if a strand snaps, preventing miles of defective product.
Finally, prioritize precision controls and automation. Ensure the equipment features a comprehensive PLC architecture. Automated closed-loop tension systems and automatic stop-motion sensors eliminate operator guesswork and safeguard your material yield.
The mechanical complexity of these systems—characterized by dozens of rapidly moving metal components interacting in close proximity—demands a rigorous preventative maintenance protocol. Neglecting this leads to thermal expansion, micro-vibrations, and inevitable catastrophic failure.
Regular Lubrication and Tribology Management: Friction is the primary enemy. The track plates and horn gears endure immense metal-on-metal friction. Operators must apply specific industrial-grade, high-viscosity lubricants to these pathways. Oil that is too thin will be thrown off by centrifugal force, while thick grease attracts dust to create an abrasive paste. Proper oiling ensures carriers glide smoothly.
Tension Calibration and Spring Fatigue: Over time, the tension springs inside the bobbin carriers lose their elasticity due to constant kinetic stress. Maintenance teams must utilize digital dynamometers to frequently check and recalibrate these springs. Replacing fatigued springs promptly is the only way to prevent loose weaves.
Cleaning Protocols and Particulate Removal: The manufacturing process naturally generates particulate matter. Whether it is microscopic textile lint or fine metallic dust, this debris mixes with lubricating oil to form a highly abrasive sludge. Daily cleaning with industrial vacuums and targeted solvents is mandatory to preserve the track plate's lifespan.
The distinction lies in the structural geometry of the manufacturing process. A braider intertwines three or more continuous strands of material in a diagonal, overlapping pattern to create a solid, tubular, or flat structure with high tensile strength. This relies on carriers moving in intersecting clockwise and counter-clockwise paths. A knitting machine, by contrast, relies on looping a single continuous yarn upon itself in horizontal or vertical rows. Braided structures are engineered for load-bearing strength and shielding, whereas knitted structures are designed for elasticity.
Operating speeds vary significantly based on the material and the machine's structural design. Traditional setups may operate between 150 to 250 RPM. However, modern high-speed machines designed for precision technical cords can sustain speeds ranging from 300 to over 400 RPM per head. Ultimately, the maximum theoretical speed is often limited by the tensile strength of the raw material rather than the mechanical limits of the hardware.
Breakage is typically caused by three main culprits: improper tension settings, worn-out guide eyelets, or poorly wound bobbins. If the carrier tension spring is set too high for the material's yield strength, the kinetic snapping motion will break the strand. Additionally, if the ceramic or metal guides develop microscopic grooves from wear, they act like tiny blades that fray and sever the material.
Production capacity is calculated by looking at the machine's RPM, the number of horn gear intersections, and the desired pitch (the length of one complete braid wrap). The basic formula is: Linear Speed (mm/min) = (RPM of horn gear × Number of gears) / Pitch (mm). A tighter pitch requires a slower linear take-up speed, which reduces overall length output per hour but increases the density and weight of the final product.
Yes, industrial braiders are versatile, but transitioning between drastically different materials requires mechanical reconfiguration. To switch from nylon textiles to copper wire, operators must change the bobbin carriers to accommodate different tension profiles and material weights. The tension springs must be recalibrated, and the take-up capstan may require a different surface coating. To minimize changeover downtime, high-volume facilities prefer to dedicate specific machines to specific material classes.
Tension control dictates the structural integrity and dimensional stability of the final product. If the tension is too high, the raw material will stretch and eventually snap, causing machine stoppages. If the tension is too low or uneven across different carriers, the strands will not lock together tightly. This results in "birdcaging" or an asymmetrical braid that fails quality assurance testing.
In this industry, "pitch" refers to the longitudinal distance measured along the axis of the braided product for one single strand to make a complete 360-degree revolution around the core. Pitch is the primary indicator of braid density. It is mechanically determined by the ratio between the rotational speed of the horn gears and the linear speed of the take-up mechanism. A slower take-up speed results in a shorter pitch and a tighter, denser braid.
Understanding the intricate anatomy of your equipment is the foundational step to optimizing your manufacturing line. From the synchronized movement of the bobbin carriers to the precise calculations of the PLC control panel, every component plays a vital role in ensuring a smooth, high-yield production process. By choosing the right hardware and pairing it with efficient auxiliary setups, facilities can drastically reduce long-term operational costs and eliminate material waste.
If your current operations are bottlenecked by legacy equipment, it is time to evaluate your production needs based on hard data. Upgrading to precision braiding equipment with a multi-head configuration offers unparalleled speed, reliability, and automated safety features. Take the next step in optimizing your facility with advanced industrial technology—review your material requirements, consult with a trusted manufacturer, and prepare your production line for the future.
