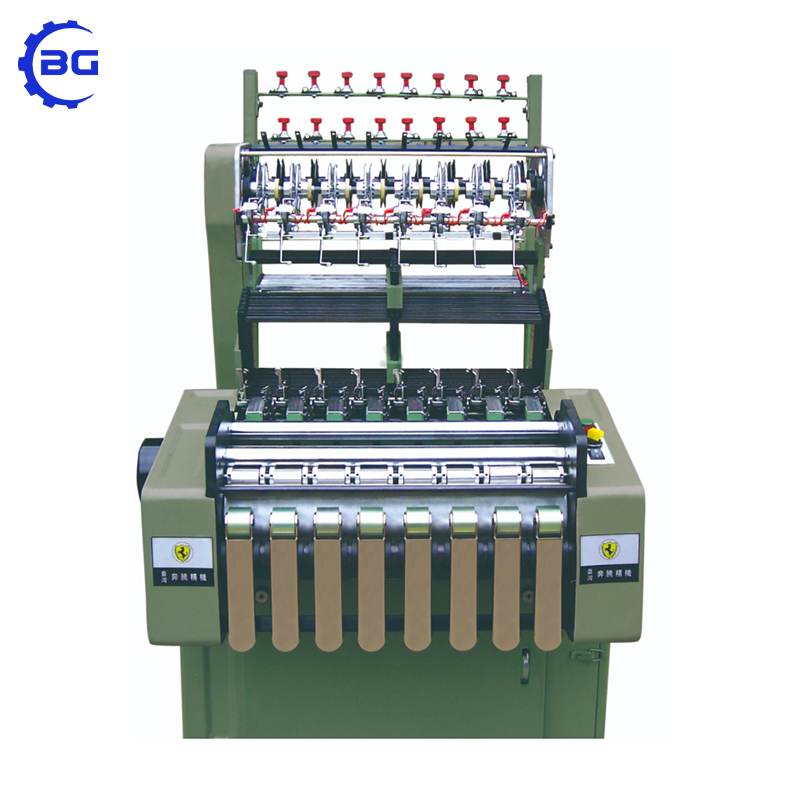

The PTA 8/30 High-Speed Needle Loom is engineered for exceptional efficiency in plain and simple-patterned tape production. Featuring 8 independent tape lines and a 30mm reed width, it delivers maximum output of consistent, high-quality webbing for a wide range of industrial and commercial applications.
▎Product Advantage
1. Unmatched Multi-Line Productivity
The PTA 8/30 redefines output with its ability to weave eight tape lines simultaneously. This high-density configuration significantly outperforms single or dual-line machines, offering exceptional efficiency for high-volume plain webbing production and mass production of simple straps. It maximizes floor space and delivers a superior return on investment by drastically increasing your meter-per-hour output.
2. High-Speed, Precision Needle Weaving Mechanism
At its core is a robust and precise needle loom mechanism, renowned for its speed and reliability in forming solid plain weaves and basic patterns. Engineered for minimal vibration, it ensures stable operation at high RPMs, resulting in consistent fabric density and selvedge quality, which is critical for reliable elastic tape manufacturing and durable plain strap production.
3. Optimized for Simplicity and Low Maintenance
Designed for ease of use and minimal downtime, the PTA 8/30 features a straightforward mechanical design that is easy to set up, operate, and maintain. Its durable construction and accessible components reduce the need for specialized technical skills and lower long-term operational costs, making it a cost-effective multi-line production workhorse.
4. Versatile Material Handling and Quick Changeover
This loom is built to handle a variety of yarns, from polyester and nylon to polypropylene and elastic materials. The design facilitates quick warp and style changeovers, allowing for flexible production scheduling to meet diverse customer demands for custom-width simple webbings and various industrial flat tape specifications.
▎Technical Parameters
| Model | PTA8/30 | Tape Lines | 8 |
| Reed Width m/m | 30 | Heald Frame | 12~16 |
| Lck Repeat | 48 | H.P. Motor | 1.5HP |
| Machine Speed | 1200 | ||
▎Product Uses
Packaging & General Purpose Straps: Ideal for high-volume production of plain polypropylene (PP) or polyester straps used in bundling, packaging, and light-duty securing across various industries.
Apparel & Footwear Components: Perfect for manufacturing plain or subtly patterned elastic and non-elastic tapes used as waistbands, bra straps, shoe laces, and inner reinforcements in garment production.
Home & Office Products: Excellently suited for producing simple webbings used in furniture trims, decorative ribbons, mini-blinds ladder tape, and other household or stationary items.
Technical & Automotive Tapes: Capable of weaving durable, plain tapes for cable bundling, wire harness wraps, and other internal automotive or electronic applications where labeling or pattern is not required.
▎Product Operate Guide
Operating the PTA 8/30 is designed for efficiency. Start by mounting the warp beams for all 8 lines. Thread the warp ends through the heddles and the 30mm reed according to the simple setup diagram. Load the weft yarn onto the needles. Adjust the basic settings for tension and beat-up via the manual controls, then start the machine. The straightforward mechanical operation allows for easy monitoring. For a complete guide, download the PTA 8/30 Operation Manual PDF.
▎Product Video
▎FAQ
Q: What is the main difference between a Needle Loom and a Jacquard Loom?
A: A Needle Loom, like the PTA 8/30, is designed for high-speed production of plain weaves or very simple patterns (like picot edges). It is mechanically simpler, faster, and more cost-effective for large volumes of unpatterned tapes. A Jacquard Loom is used for complex, detailed patterns and designs.
Q: What is the typical production speed of this 8-line loom?
A: The PTA 8/30 operates at very high speeds, optimized for output. The exact picks per minute (PPM) can vary based on yarn material and tape width. Please contact us for specific technical data sheets with speed ratings.
Q: Can it produce elastic (spandex) tapes effectively?
A: Yes, with proper configuration and tension settings, it is well-suited for high-volume production of plain elastic webbings commonly used in apparel.
Q: How many operators are typically needed to run this machine?
A: Due to its multi-line efficiency and straightforward operation, one trained operator can typically manage the PTA 8/30, especially for long production runs, making it highly efficient in terms of labor.
Q: What is your after-sales service and parts availability?
A: We provide a standard warranty, technical support, and ensure the ready availability of common wear parts to guarantee minimal downtime and sustained high productivity for your operation.
