PTEJ 4/80/240

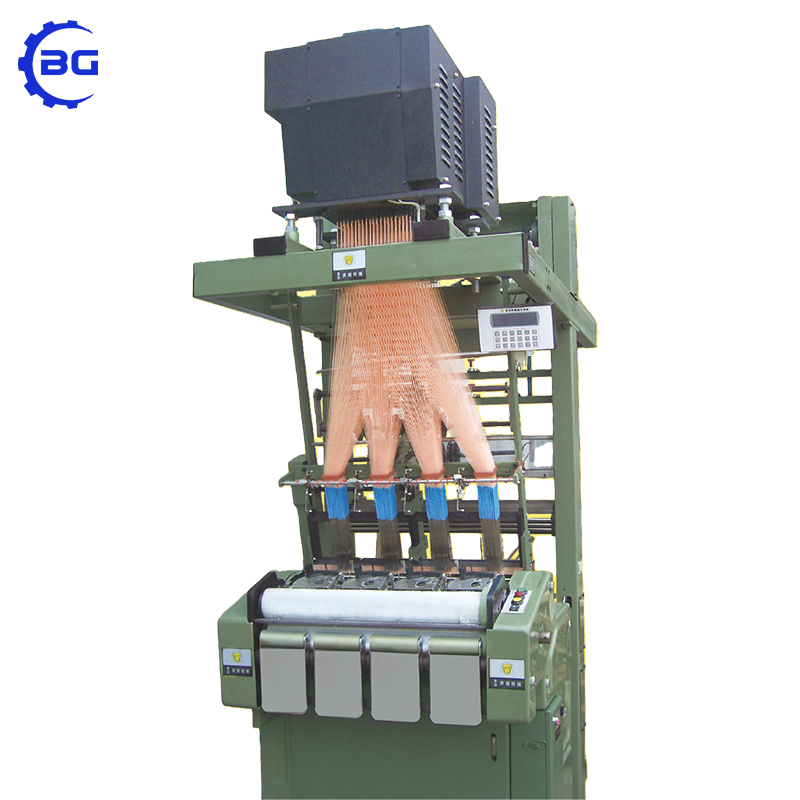

The PTEJ 4/80/240 is a specialized wide-format computerized Jacquard loom engineered for high-capacity production of wider straps and tapes. Featuring 4 production lines and an expansive 80mm reed width, it delivers exceptional versatility for weaving detailed, broad jacquard patterns into premium webbings and straps.

▎Product Advantage

1. Superior Wide-Weaving Capability with 80mm Reed

The defining feature of the PTEJ 4/80/240 is its industry-leading 80mm reed width, offering unprecedented production flexibility. This allows for the efficient creation of wide single straps (up to ~80mm) or the simultaneous production of multiple narrower tapes within each line. It is the ultimate solution for high-volume wide jacquard strap manufacturing and versatile multi-configuration webbing production, enabling you to cater to niche and bulk markets with one robust platform.

2. High-Speed, Multi-Line Efficiency

This model optimizes output with four powerful, independent weaving lines. While offering slightly lower line density than higher-count models, each line boasts a significantly wider capacity, resulting in superior overall meterage output for wider products. This balanced design maximizes production speed and yield for heavy-duty webbing manufacturing and large-scale orders of wide decorative trims, ensuring a strong return on investment.

3. Advanced Electronic Jacquard for Large-Area Patterns

Governed by a sophisticated 240-hook electronic Jacquard system, this loom excels at producing intricate, high-definition patterns across its full 80mm width. The system supports complex designs, logos, and text with remarkable clarity and repeat precision, making it perfect for creating custom-branded wide straps and detailed technical webbings where visual impact and information density are critical.

4. Robust Construction for Demanding Production

Built on an extra-stable, heavy-duty frame to accommodate the wider reed, the PTEJ 4/80/240 ensures vibration-free, high-speed shuttleless operation. This rugged design guarantees consistent fabric quality, minimizes downtime, and handles a broader spectrum of yarns-from fine decorative threads to thick, high-tenacity fibers-making it exceptionally reliable for continuous industrial strap weaving.

▎Technical Parameters

▎Product Uses

Wide Sport & Lifestyle Straps: Perfect for producing premium, patterned shoulder straps for backpacks, luggage, duffel bags, and wide pet leashes/vests where comfort, durability, and detailed branding are essential.

Technical & Industrial Slings: Ideal for manufacturing wide, high-strength lifting slings, cargo tie-downs, and industrial harness components that require integrated warning labels, logos, or capacity information woven directly into the webbing.

Fashion & Heavy-Duty Trims: Excellently suited for creating wide decorative bands for outerwear, hats, and specialty garments, as well as robust trim for marine, automotive, or furniture applications.

Medical & Support Bands: Capable of weaving wider elastic or inelastic support bands for orthopedic and sports medicine applications, where a larger surface area and custom patterning are beneficial.

▎Product Operate Guide

Operation is streamlined through an intuitive centralized computer. Begin by powering on the machine and mounting the warp beam. Select your desired pattern file for each of the four lines via the touchscreen interface. Carefully thread the warp ends through the Jacquard harness and the 80mm reed. After loading the weft yarns, initiate the automated start sequence. The system provides real-time monitoring and diagnostics for smooth operation. For comprehensive setup and maintenance instructions, download the PTEJ 4/80/240 Operator's Manual PDF.

▎Product Video

▎FAQ

Q: What is the primary advantage of an 80mm reed width?

A: The 80mm width is a game-changer for producing wide single straps (e.g., wide backpack straps, lifting slings) more efficiently than narrower looms. It also provides unmatched flexibility to configure each line for multiple, parallel narrower tapes, significantly boosting overall productivity for standard-width products.

Q: Can this machine handle very thick or high-tenacity yarns?

A: Yes. Its heavy-duty construction, wider reed spacing, and powerful weft insertion are specifically designed to process thicker, stronger yarns commonly used in technical and industrial webbing applications, while still accommodating standard materials.

Q: Can I run a different pattern on each of the 4 lines and within each wide reed?

A: Yes. The electronic Jacquard and control system typically allow independent pattern control for each line. Furthermore, when configured to weave multiple narrower tapes side-by-side in one 80mm reed, different patterns can often be assigned to each adjacent tape, maximizing flexibility.

Q: Is training provided for the wider loom setup and design software?

A: Absolutely. We provide extensive training covering the unique setup for wide-format weaving, pattern design optimized for larger areas, and machine maintenance to ensure you fully leverage its advanced capabilities.

Q: What after-sales support is available for this specialized model?

A: We offer a comprehensive warranty, dedicated technical support from specialists familiar with wide-format looms, and guaranteed access to specific spare parts to ensure the long-term reliability and productivity of your investment.
