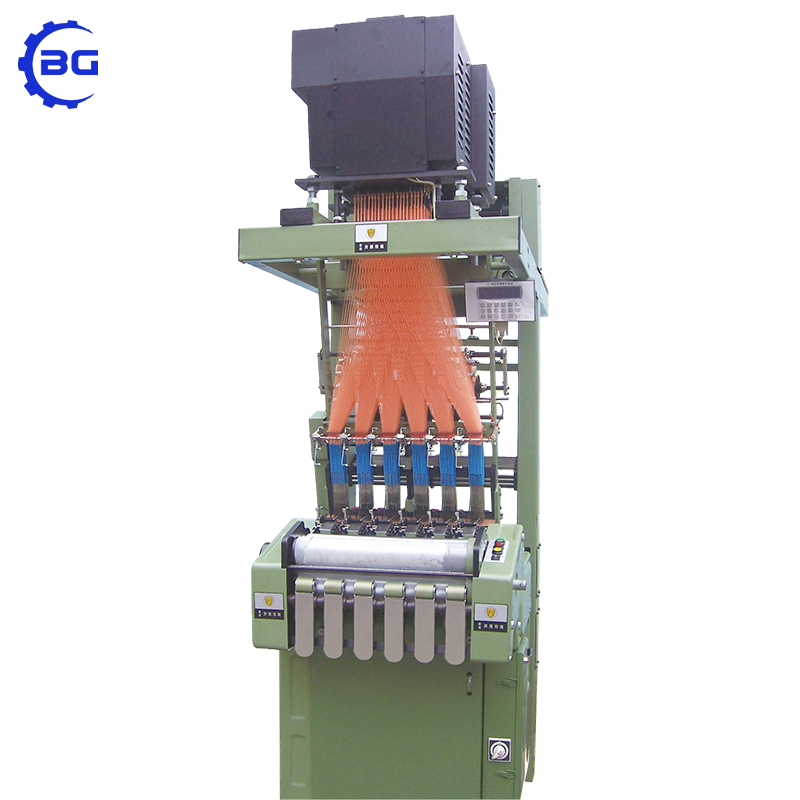

PTEJ 6/55/240

The PTEJ 6/55/240 is a versatile computerized Jacquard loom designed for high-output production of wider, detailed narrow fabrics. Featuring 6 tape lines and an expanded 55mm reed width, it expertly weaves intricate patterns into a broader range of decorative trims, robust straps, and technical webbings with superior efficiency.

▎Product Advantage

1. Enhanced Versatility with 55mm Wide-Reed Design

The standout feature of the PTEJ 6/55/240 is its 55mm reed width, providing 22% more weaving area than a standard 45mm model. This expanded capability allows for the production of wider, more complex tapes and enables the simultaneous weaving of multiple narrower tapes within a single line. It is the ideal machine for wide-pattern jacquard webbing and versatile multi-strap production, offering unmatched flexibility to meet diverse market demands.

2. High-Capacity Multi-Line Production

This model efficiently balances output and control with six independent production lines. It significantly increases throughput compared to single-line looms, making it perfect for fulfilling substantial orders for high-volume woven label manufacturing and decorative ribbon production. The multi-line design maximizes factory floor productivity and delivers a faster return on investment for mid-to-large-scale operations.

3. Precision Electronic Jacquard for Complex Designs

Driven by an advanced electronic Jacquard system (implied by the '240' specification), this loom offers exceptional design freedom. Operators can create and store thousands of detailed patterns, from intricate logos to elaborate graphics, with sharp definition across the full 55mm width. This ensures consistent, high-quality output for custom technical identification tapes and detailed fashion trims with perfect repeat accuracy on every line.

4. Robust, High-Speed Shuttleless Weaving Platform

Built on a stable, heavy-duty frame with a reliable shuttleless weft insertion system, the PTEJ 6/55/240 ensures smooth, high-speed operation. This technology minimizes yarn stress and breakage, resulting in superior fabric quality, reduced downtime, and the ability to handle a broader range of yarns-from fine threads to heavier deniers-for durable industrial webbing manufacturing.

▎Technical Parameters

▎Product Uses

Wide Fashion Trims & Apparel Details: Perfect for producing broader decorative ribbons, elaborate hat bands, bag trims, and unique garment accents that require detailed patterns across a wider surface area (up to 55mm).

Technical Straps & Sporting Goods: Ideal for manufacturing robust, patterned webbing for backpack shoulder straps, luggage handles, pet leashes, and sports equipment where both width for comfort and complex design are important.

Industrial & Safety Webbing: Excellently suited for weaving wider, high-strength identification tapes, cargo straps, and safety harness components that require clear, woven-in logos, instructions, or warning text.

Home Furnishings & Interior Decor: Capable of producing premium decorative bands for curtains, cushions, and craft projects, offering greater design scope due to the increased reed width.

▎Product Operate Guide

Operating the PTEJ 6/55/240 is managed through its centralized computer system. Begin by powering on the machine and loading the warp beam. On the intuitive touchscreen, select your pre-loaded pattern file. Thread the warp through the electronic Jacquard heads and the 55mm reed for all six lines. After loading the weft yarns, initiate the automated start sequence to begin synchronized, high-speed weaving. The control panel provides real-time monitoring and fault alerts. For detailed instructions, download the PTEJ 6/55/240 Operation and Maintenance Manual PDF.

▎Product Video

▎FAQ

Q: What is the main benefit of the 55mm reed width compared to narrower models?

A: The 55mm width offers greater versatility. It allows you to produce single, wider tapes (up to ~55mm) for applications like broad straps or trims. It also provides the flexibility to weave multiple narrower tapes side-by-side within one line, optimizing production for smaller-width products.

Q: Can this machine handle heavy yarns for industrial webbing?

A: Yes, its robust shuttleless mechanism and sturdy construction are designed to process a wide range of yarns, including heavier polyester and nylon threads commonly used for technical and industrial webbings, in addition to finer fashion yarns.

Q: Is the pattern design software user-friendly?

A: Absolutely. The machine comes with specialized, intuitive design software that allows users to easily create, edit, and manage complex Jacquard patterns. We provide comprehensive training and support to ensure you can quickly master it.

Q: What kind of technical support and warranty is offered?

A: We provide a standard manufacturer's warranty, dedicated remote technical support, and ensure the availability of essential spare parts. Our global service network aims to ensure your machine maintains high uptime and performance.

Q: How do I request a quote or a specification sheet?

A: Please contact our sales team through our website's inquiry form or email. Provide details about your target products (width, material, pattern complexity) to receive a tailored quotation and comprehensive technical specifications.
