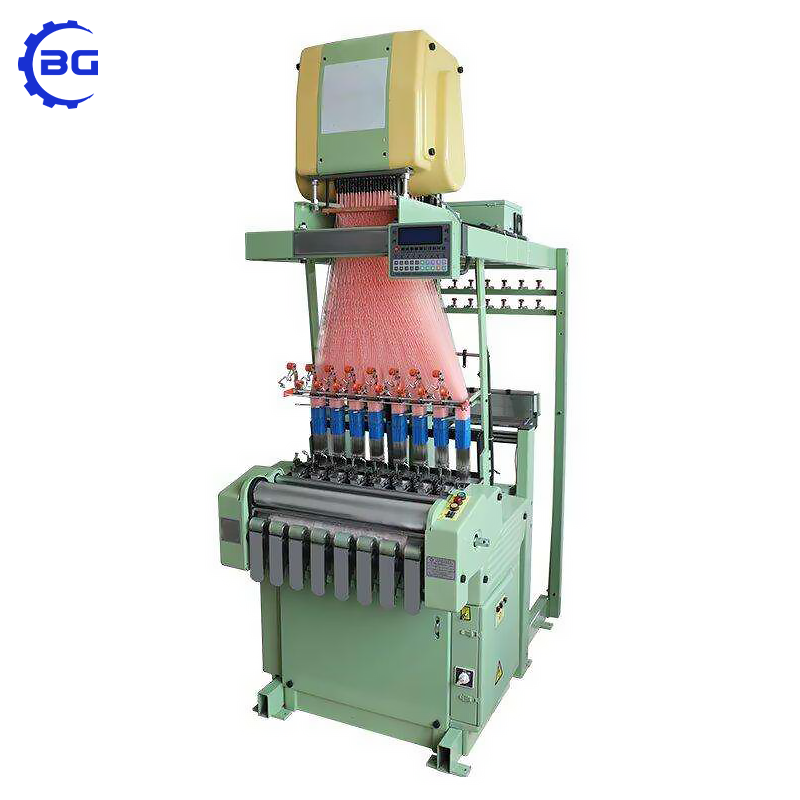

The PTEJ 8/30/192 is a high-efficiency, computerized Jacquard narrow fabric loom designed for maximizing output of fine detailed tapes. With 8 independent tape lines and a 30mm reed width, it delivers superior pattern versatility and production capacity for intricate labels, trims, and technical webbings.
▎Product Advantage
1. Unparalleled Multi-Line Efficiency
The PTEJ 8/30/192 defines high-volume production with its capability to weave eight tape lines simultaneously. This configuration dramatically increases output compared to single or dual-line machines, offering exceptional efficiency for high-volume jacquard label manufacturing and mass production of decorative ribbons. It maximizes your floor space utility and return on investment, making it ideal for fulfilling large-scale orders.
2. Precision Electronic Jacquard for Complex Designs
Equipped with an advanced electronic Jacquard system (likely indicated by '192' hooks/needles), this loom offers exceptional pattern flexibility. Operators can create and store thousands of intricate designs with sharp definition. The precise 30mm reed width ensures consistent, high-clarity patterns on each tape, perfect for weaving complex logo labels and detailed narrow fashion trims with perfect repeat accuracy.
3. High-Speed, Reliable Shuttleless Weaving
Utilizing a state-of-the-art shuttleless weft insertion system, this loom ensures smooth, high-speed operation with minimal vibration and yarn stress. This technology enables faster production cycles, reduces material waste from breaks, and enhances overall fabric quality, providing a reliable solution for continuous high-speed webbing production with a wide range of yarns.
4. Intelligent Centralized Control System
The entire operation is managed through a user-friendly computerized interface. This system allows for individual or synchronized control of all 8 lines, real-time monitoring, fault alerts, and easy pattern management. It simplifies the workflow, reduces skilled labor requirements, and ensures consistent, repeatable quality, streamlining your computerized narrow fabric manufacturing process.
▎Technical Parameters
| Model | Tape Lines | Reed Width m/m | Heald Frame | Lck Repeat | H.P. Motor | MAX. R.P.M |
| PTEJ8/30/192 | 8 | 30 | 8 | 48 | 2H.P | 900 |
| PTEJ6/45/192 | 6 | 45 | 8 | 48 | 2H.P | 900 |
| PTEJ4/65/240 | 4 | 65 | 8 | 48 | 2H.P | 900 |
| PTEJ6/45/240 | 6 | 45 | 8 | 48 | 2H.P | 900 |
| PTEJ8/45/240 | 8 | 45 | 8 | 48 | 2H.P | 900 |
| PTEJ6/55/240 | 6 | 55 | 8 | 48 | 2H.P | 900 |
| PTEJ4/80/240 | 4 | 80 | 8 | 48 | 2H.P | 900 |
| PTEJ4/65/320 | 4 | 65 | 8 | 48 | 2H.P | 750 |
| PTEJ6/45/320 | 6 | 45 | 8 | 48 | 2H.P | 750 |
| PTEJ4/65/400 | 4 | 65 | 8 | 48 | 2H.P | 750 |
| PTEJ4/65/640 | 4 | 65 | 2 | 48 | 2H.P | 600 |
▎Product Uses
Fashion & Apparel Branding: Perfect for producing high-quality woven labels, care tags, and intricate decorative ribbons for clothing, footwear, and accessories, where brand identity and fine detail are paramount.
Sports & Outdoor Equipment: Ideal for manufacturing durable, patterned webbing for backpack straps, sports bags, climbing gear, and elasticized trims for activewear, combining functionality with design.
Home Furnishings & Giftware: Excellently suited for creating decorative ribbons for gift wrapping, curtains, upholstery ties, and other home decor items that require detailed patterns and consistent quality.
Technical & Promotional Tapes: Capable of producing specialized tapes for automotive applications, safety equipment, and promotional bands with woven-in text, barcodes, or complex graphics.
▎Product Operate Guide
Operating the PTEJ 8/30/192 is streamlined through its central computer. After powering on, load the warp beam and select your pattern file from the digital library on the touchscreen. Thread the warp ends through the Jacquard harness and the 30mm reed for all 8 lines. Load the weft yarns and initiate the automated start sequence. The system monitors production and alerts you to any issues. For detailed setup and maintenance, download the PTEJ 8/30/192 Operation Manual PDF.
▎Product Video
▎FAQ
Q: What does the "192" in the model number refer to?
A: In this context, '192' most commonly specifies the number of electronic Jacquard hooks or needles, indicating the pattern capability and fineness. A 192-needle system allows for detailed and complex designs across the width of each tape. Please confirm this specification with our technical team.
Q: Can different patterns be woven on each of the 8 lines at the same time?
A: Yes, depending on the specific controller configuration. The advanced electronic system typically allows for independent pattern selection and control for each tape line, offering tremendous flexibility for mixed production runs.
Q: What yarn types and sizes are suitable for this 30mm reed loom?
A: It is designed to handle a versatile range of yarns, including fine to medium count polyester, cotton, nylon, and elastic yarns, making it suitable for everything from delicate satin labels to stronger polyester webbings.
Q: What kind of training and software support is provided?
A: We provide comprehensive training on machine operation, basic maintenance, and pattern design software. Support includes manuals, instructional videos, and access to technical assistance to ensure you can leverage the full potential of the loom.
Q: How is the machine's performance and maintenance supported?
A: We offer a standard warranty and reliable after-sales service, including access to a global network for spare parts and technical support. Our goal is to ensure maximum uptime and long-term performance for your investment.
