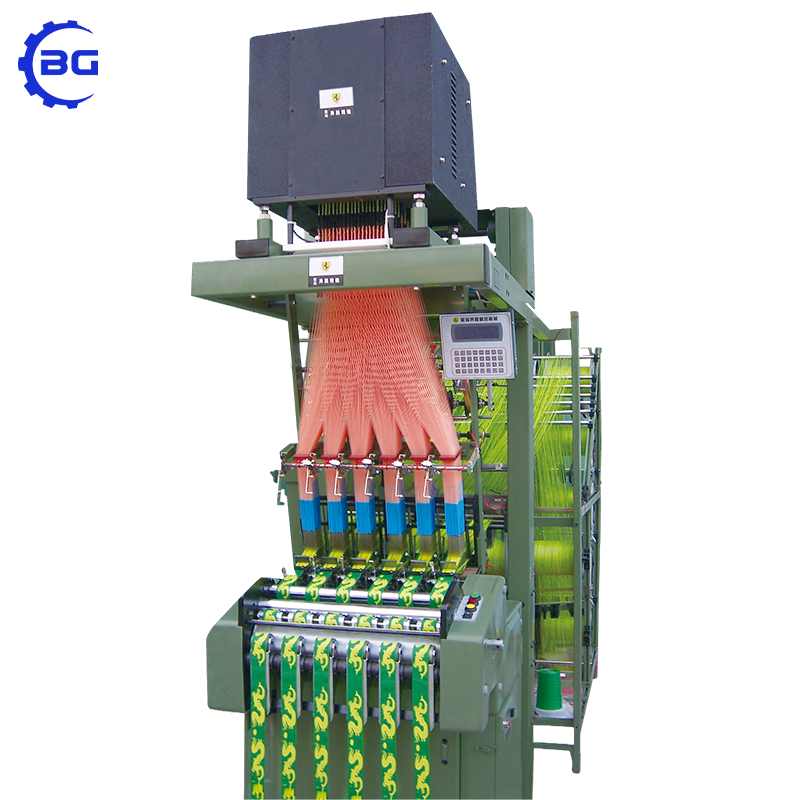

The PTEJ 6/45/400 is a state-of-the-art computerized Jacquard narrow fabric loom, engineered for high-efficiency, multi-tape production. Featuring 6 independent tape lines and a 45mm reed width, it seamlessly combines intricate electronic Jacquard patterning with the speed and reliability of shuttleless weaving for superior-quality decorative and technical tapes.
▎Product Advantage
1. High-Efficiency Multi-Line Production with Electronic Jacquard
This loom revolutionizes output with its 6-line capability, allowing simultaneous production of six identical or different Jacquard patterned tapes. Driven by a sophisticated electronic Jacquard system and shuttleless weft insertion, it achieves speeds significantly higher than traditional mechanical looms. This makes it the ultimate solution for high-volume jacquard label production and decorative elastic webbing, dramatically increasing your factory's capacity and profitability.
2. Unmatched Design Flexibility and Precision
The advanced computerized controller provides unparalleled design freedom. Operators can easily create, store, and switch between complex patterns with thousands of hooks directly on the touchscreen. Combined with the precise 45mm reed width, this ensures every tape line delivers sharp, consistent, and high-definition patterns, perfect for manufacturing intricate fashion trims and custom technical identification tapes with flawless repeat accuracy.
3. Robust & Stable Shuttleless Weaving Mechanism
The machine utilizes a reliable and high-speed shuttleless (rapier or projectile) weft insertion system. This design minimizes vibration, reduces yarn breakage, and allows for consistent high-speed operation with a wide range of materials, from delicate filaments to robust elastic yarns. The result is superior fabric quality, reduced downtime, and lower maintenance costs for continuous narrow fabric weaving.
4. User-Centric Intelligent Control System
Centralized control is achieved through an intuitive industrial PC and graphical interface. The system offers real-time monitoring of all 6 tape lines, fault diagnosis, production data tracking, and remote pattern upload capabilities. This significantly simplifies operation, reduces skilled labor dependency, and enhances overall production management efficiency for computerized narrow fabric manufacturing.
▎Technical Parameters
| Model | Tape Lines | Reed Width m/m | Heald Frame | Lck Repeat | H.P. Motor | MAX. R.P.M |
| PTEJ8/30/192 | 8 | 30 | 8 | 48 | 2H.P | 900 |
| PTEJ6/45/192 | 6 | 45 | 8 | 48 | 2H.P | 900 |
| PTEJ4/65/240 | 4 | 65 | 8 | 48 | 2H.P | 900 |
| PTEJ6/45/240 | 6 | 45 | 8 | 48 | 2H.P | 900 |
| PTEJ8/45/240 | 8 | 45 | 8 | 48 | 2H.P | 900 |
| PTEJ6/55/240 | 6 | 55 | 8 | 48 | 2H.P | 900 |
| PTEJ4/80/240 | 4 | 80 | 8 | 48 | 2H.P | 900 |
| PTEJ4/65/320 | 4 | 65 | 8 | 48 | 2H.P | 750 |
| PTEJ6/45/320 | 6 | 45 | 8 | 48 | 2H.P | 750 |
| PTEJ4/65/400 | 4 | 65 | 8 | 48 | 2H.P | 750 |
| PTEJ4/65/640 | 4 | 65 | 2 | 48 | 2H.P | 600 |
▎Product Uses
Fashion Apparel & Accessories: Ideal for producing elaborate jacquard labels, decorative ribbons, shoelaces, and high-end trims for clothing, bags, and footwear, where detailed branding and aesthetic appeal are crucial.
Technical & Industrial Webbing: Excellently suited for weaving strong, identifiable tapes for automotive harness ties, cargo straps, safety equipment, and industrial bundling, where durability and clear, woven-in markings are required.
Medical & Sporting Goods: Perfect for manufacturing specialized elastic and non-elastic tapes used in orthopedic supports, sports gear, and medical applications, offering consistent quality and the ability to integrate complex patterns or logos.
Home Furnishing & Giftware: Capable of producing decorative cords, curtain tie-backs, and ornamental ribbons for home decor and gift packaging, providing versatility for both design and volume.
▎Product Operate Guide
Operation is streamlined through the central computer. Begin by powering the loom and loading your warp beam. Access the desired pattern file on the touchscreen, thread the warp through the Jacquard harness and the 45mm reed, and set up the weft yarns. Initiate the automated start-up sequence to begin simultaneous weaving on all 6 lines. The system provides clear alerts for any issues. For comprehensive instructions, please download the PTEJ 6/45/400 Full Operation Manual PDF.
▎Product Video
▎FAQ
Q: What does "6/45/400" in the model name specify?
A: It defines key capabilities: '6' is the number of independent tape lines, '45' is the reed width in millimeters for each tape line (determining max tape width), and '400' typically refers to the total working width or another key design parameter (please confirm based on your full specs).
Q: What types of yarn can this loom process?
A: It is highly versatile and can process a wide range of materials including polyester, nylon, cotton, PP, elastic (spandex), and metallic yarns, making it suitable for both fashion and technical applications.
Q: How complex can the Jacquard patterns be?
A: The electronic Jacquard system supports highly complex and detailed patterns, limited primarily by the number of hooks (e.g., 2688, 4096, etc.) and the design software. You can weave logos, text, and intricate graphics with high clarity.
Q: Is training provided for the computerized system?
A: Yes. We provide detailed operational training, either on-site or via remote sessions, along with complete software manuals and pattern design guidance to ensure your team can fully utilize the machine's capabilities.
Q: What is your after-sales service policy?
A: We offer a standard warranty, online technical support, and ensure the availability of critical spare parts. Our service network aims to minimize downtime and keep your production running smoothly.
