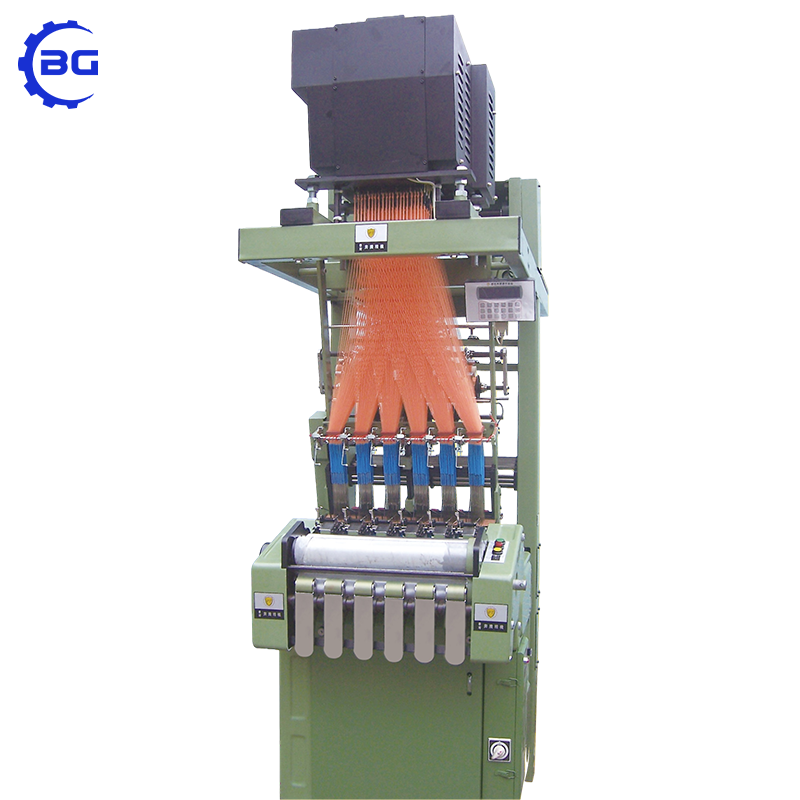

The PTEJ 6/45/240 is a high-performance computerized Jacquard narrow fabric loom, expertly engineered for balanced efficiency and versatility. With 6 independent production lines and a 45mm reed width, it masterfully produces a wide range of detailed Jacquard tapes, labels, and technical webbings with superior speed and precision.
▎Product Advantage
1. Optimized Multi-Line Production Efficiency
The PTEJ 6/45/240 strikes the perfect balance between high output and operational manageability with its 6-tape-line configuration. This design significantly boosts productivity over single-line machines while maintaining easier setup and monitoring compared to higher-line-count models. It is the ideal solution for efficient multi-line label production and mid-to-high-volume decorative tape weaving, offering an excellent return on investment for growing businesses.
2. High-Definition Patterning with 45mm Versatility
Equipped with a capable electronic Jacquard system (suggested by the '240' configuration) and a practical 45mm reed width, this loom excels at producing clear, complex patterns. It provides ample design space for detailed logos, text, and graphics, making it perfect for weaving branded apparel labels and custom technical identification tapes with excellent clarity and consistent repeat accuracy across all six lines.
3. Robust and Stable Shuttleless Operation
The machine's core is built on a reliable, high-speed shuttleless weft insertion mechanism. This ensures smooth, low-vibration operation, which minimizes yarn breakage and allows for consistent, high-quality fabric production. The robust construction guarantees stability during continuous runs, making it a dependable choice for durable webbing manufacturing and ensuring low maintenance costs over its lifespan.
4. Streamlined Computerized Control for Easy Management
Operation is centralized through an intuitive computer control system featuring a user-friendly touchscreen interface. This allows for easy pattern design, storage, and recall, quick parameter adjustments for each line, and real-time production monitoring with fault diagnostics. This smart system reduces skill barriers and enhances overall efficiency for computerized narrow fabric production.
▎Technical Parameters
| Model | Tape Lines | Reed Width m/m | Heald Frame | Lck Repeat | H.P. Motor | MAX. R.P.M |
| PTEJ8/30/192 | 8 | 30 | 8 | 48 | 2H.P | 900 |
| PTEJ6/45/192 | 6 | 45 | 8 | 48 | 2H.P | 900 |
| PTEJ4/65/240 | 4 | 65 | 8 | 48 | 2H.P | 900 |
| PTEJ6/45/240 | 6 | 45 | 8 | 48 | 2H.P | 900 |
| PTEJ8/45/240 | 8 | 45 | 8 | 48 | 2H.P | 900 |
| PTEJ6/55/240 | 6 | 55 | 8 | 48 | 2H.P | 900 |
| PTEJ4/80/240 | 4 | 80 | 8 | 48 | 2H.P | 900 |
| PTEJ4/65/320 | 4 | 65 | 8 | 48 | 2H.P | 750 |
| PTEJ6/45/320 | 6 | 45 | 8 | 48 | 2H.P | 750 |
| PTEJ4/65/400 | 4 | 65 | 8 | 48 | 2H.P | 750 |
| PTEJ4/65/640 | 4 | 65 | 2 | 48 | 2H.P | 600 |
▎Product Uses
Apparel & Fashion Accessories: Excellently suited for producing woven labels, care tags, decorative ribbons, and elaborate trims for clothing, bags, and hats, where brand detail and aesthetic quality are essential.
Sports, Outdoor & Luggage Straps: Ideal for manufacturing strong, patterned webbing for backpack straps, luggage handles, sports equipment, and gear loops, combining functionality with customized design.
Industrial & Automotive Tapes: Perfect for weaving durable, identifiable tapes for cable bundling, automotive parts, safety equipment, and industrial harnesses that require woven-in instructions or logos.
Home Decor & Gift Packaging: Capable of producing high-quality decorative ribbons for gift wrapping, interior furnishings, and craft applications, offering versatility in both design and production volume.
▎Product Operate Guide
Operating the PTEJ 6/45/240 is straightforward. Begin by powering on the machine and loading the warp beam. Select your desired pattern file on the touchscreen control panel. Thread the warp ends through the electronic Jacquard heads and the 45mm reed for all six lines, then load the weft yarns. Initiate the automated start-up sequence to begin synchronized weaving. The system provides clear visual alerts for any operational issues. For complete setup, maintenance, and safety procedures, please download the PTEJ 6/45/240 Full Operation Manual PDF.
▎Product Video
▎FAQ
Q: What does the "240" in the model number signify?
A: The '240' typically refers to the capacity or configuration of the electronic Jacquard system, often indicating the number of hooks or needles. This level of capacity supports the creation of detailed and complex woven patterns across the 45mm width of each tape line.
Q: Can I run a different pattern on each of the 6 tape lines simultaneously?
A: Yes, the advanced computerized controller generally allows for independent pattern selection and management for each production line. This provides great flexibility to produce multiple custom tape designs in a single production run.
Q: What types of yarn are compatible with this loom?
A: The loom is versatile and can process a wide array of materials, including polyester, cotton, nylon, polypropylene (PP), and elastic yarns (spandex), accommodating both fashion and technical weaving applications.
Q: Is training provided for the software and machine operation?
A: Yes, we provide comprehensive operational training, which can be conducted on-site or via remote sessions. We also supply detailed software guides and pattern design support to ensure your team can utilize the machine effectively.
Q: What is the after-sales service and support policy?
A: We offer a standard warranty, dedicated technical support via phone/email, and ensure the availability of critical spare parts through our global network to minimize downtime and support your continuous production.
